Description

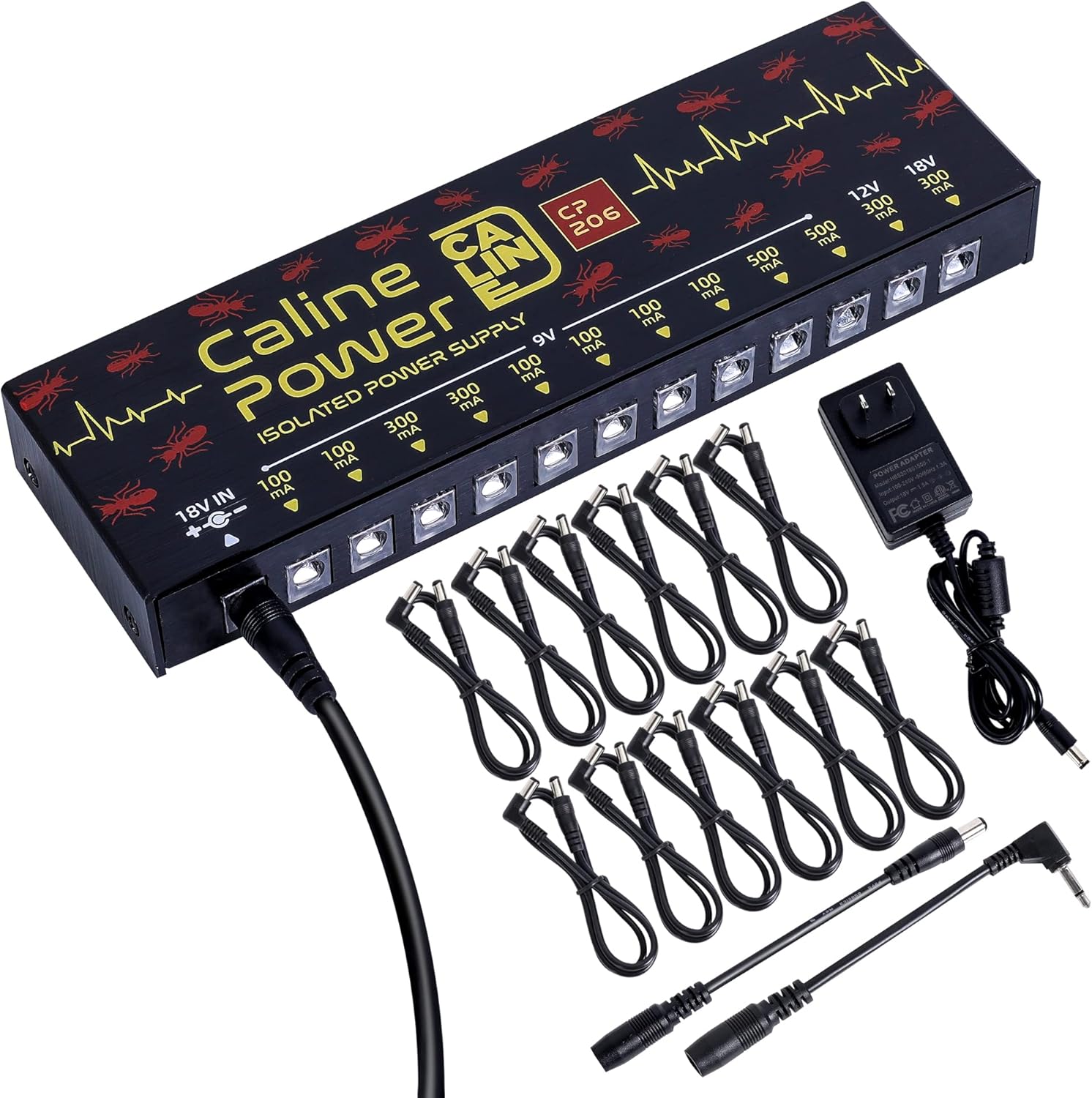

Caline CP-206 Fully Isolated Pedalboard Power Supply
Compact, fully isolated pedalboard power supply with ultra-low noise performance — clean, stable power for modern guitar and bass rigs.
Fully Isolated. Ultra-Low Noise.
The CP-206 uses a modern lightweight IC design instead of bulky transformers, delivering fully isolated outputs in a compact form factor.
- Eliminates ground loop noise
- Anti-interference circuit design
- Stable voltage for analog & digital pedals
- Cleaner signal chain and quieter pedalboard

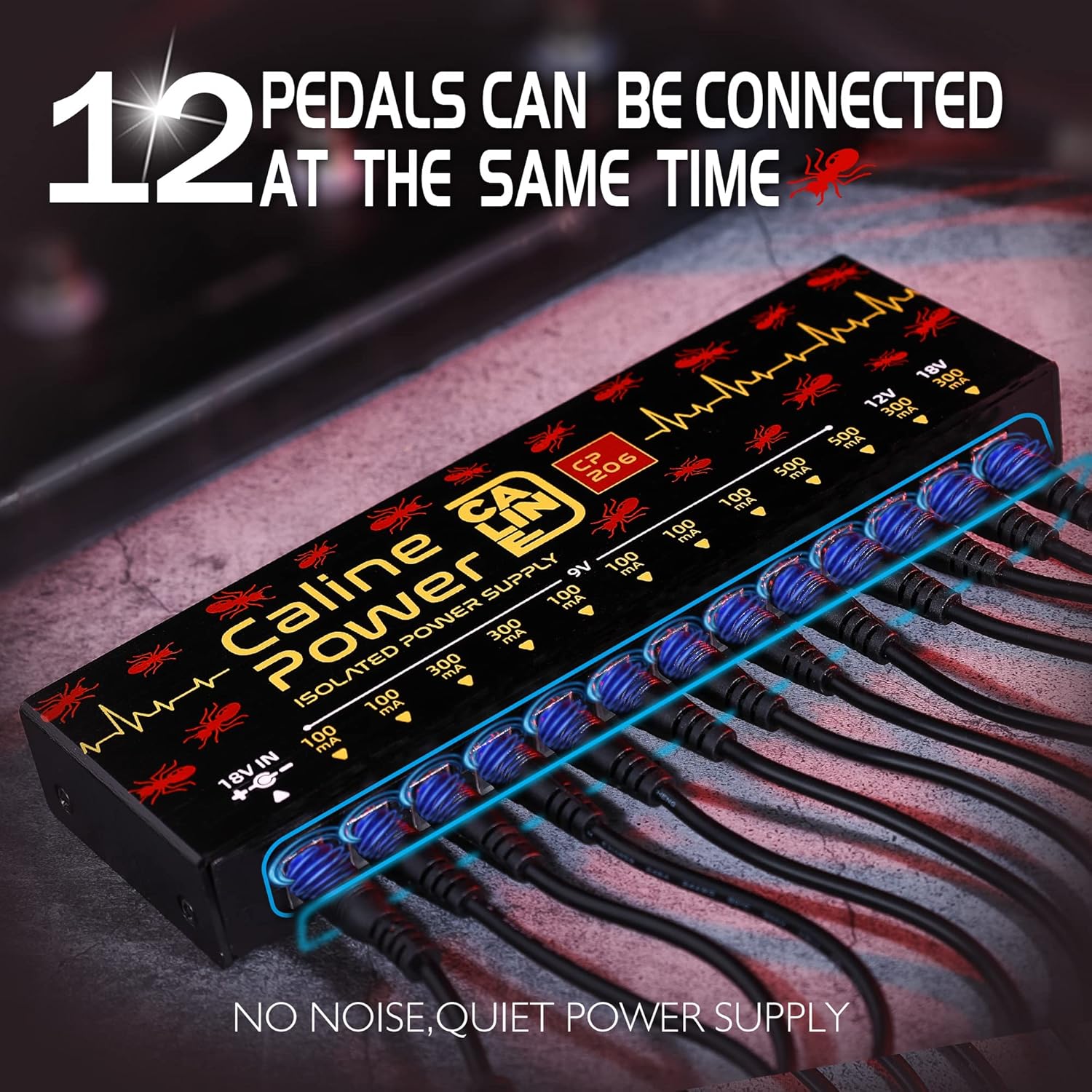

12 Fully Isolated Outputs
Designed to power a wide range of pedals — from low-draw analog effects to power-hungry digital and multi-effects units.

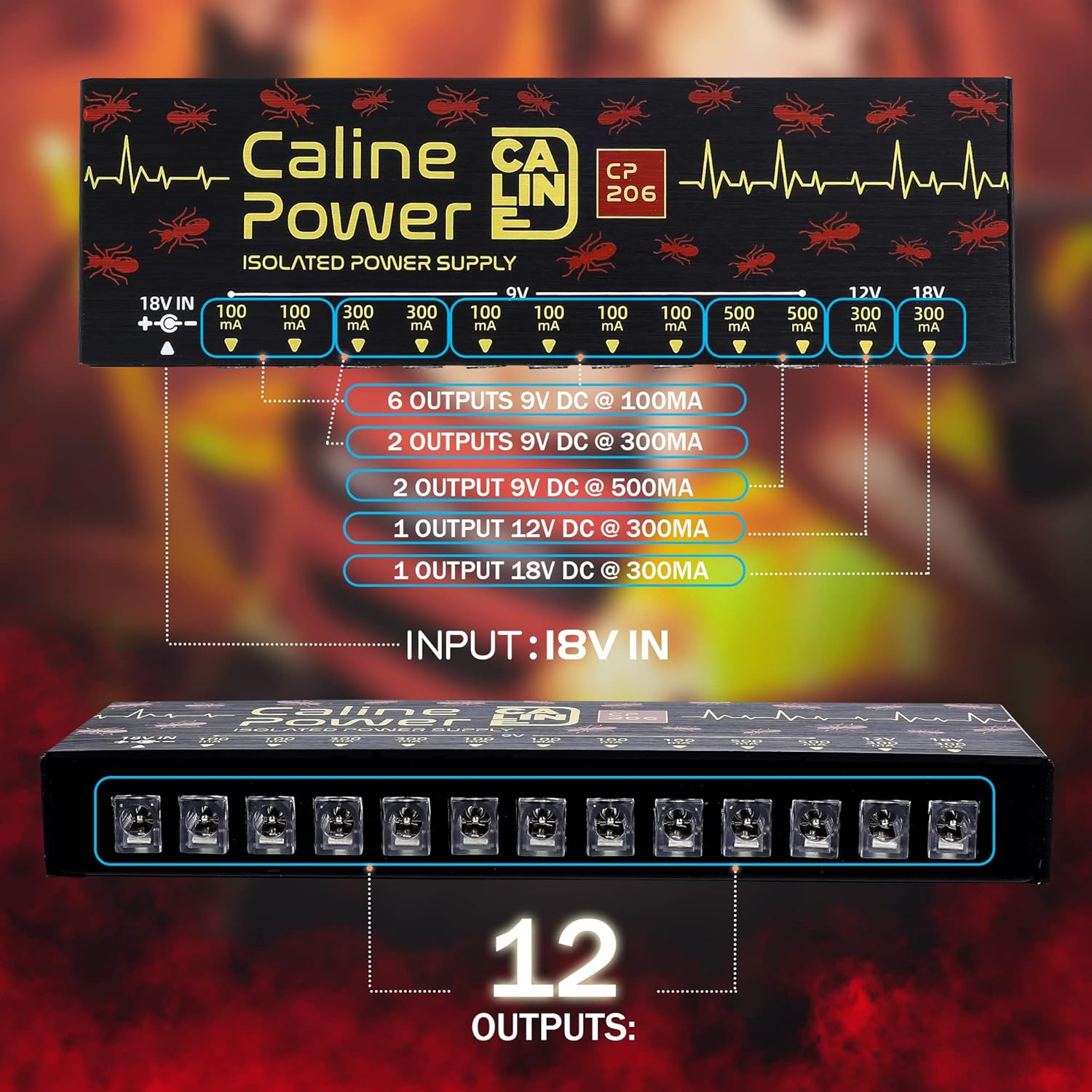

- 6 × 9V DC @ 100mA – Standard analog pedals
- 2 × 9V DC @ 300mA – Digital delays & reverbs
- 2 × 9V DC @ 500mA – Multi-effects & DSP pedals
- 1 × 12V DC @ 300mA – Special voltage pedals
- 1 × 18V DC @ 300mA – High headroom effects
Smart Protection & Status Indicators

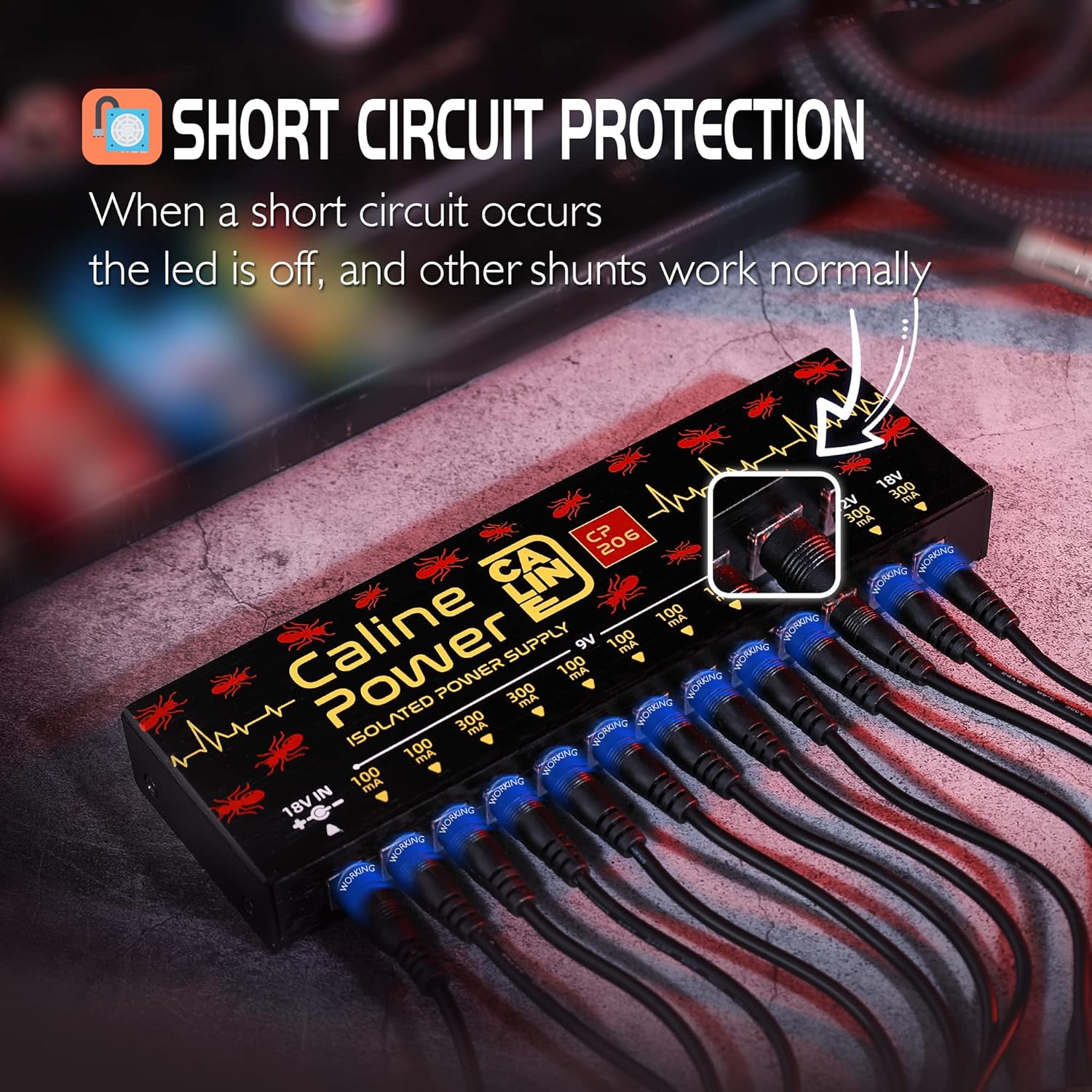

- Independent outputs with short-circuit protection
- LED indicator for each output
- LED ON = power active
- LED OFF = fault or overload detected
Specifications
Frequently Asked Questions (FAQs)
What does a fully isolated power supply mean?
Each output is electrically isolated, preventing ground loop noise and interference between pedals.
Is the Caline CP-206 suitable for digital pedals?
Yes, the higher-current outputs (300mA and 500mA) are ideal for digital delays, reverbs and multi-effects.
Can this power supply reduce pedalboard noise?
Yes, the anti-ground noise and anti-interference circuit design significantly reduces hum and hiss.
Does each output have protection?
Yes, every output is independently protected against short circuits and overloads.
What do the LED indicators show?
When an output is working normally the LED stays on; if a fault occurs the LED turns off.
Can it power both 9V, 12V and 18V pedals?
Yes, the CP-206 includes dedicated 9V, 12V and 18V isolated outputs.
Is this power supply pedalboard-friendly?
Yes, its slim, lightweight design makes it easy to mount under or on top of most pedalboards.
What input power does the CP-206 require?

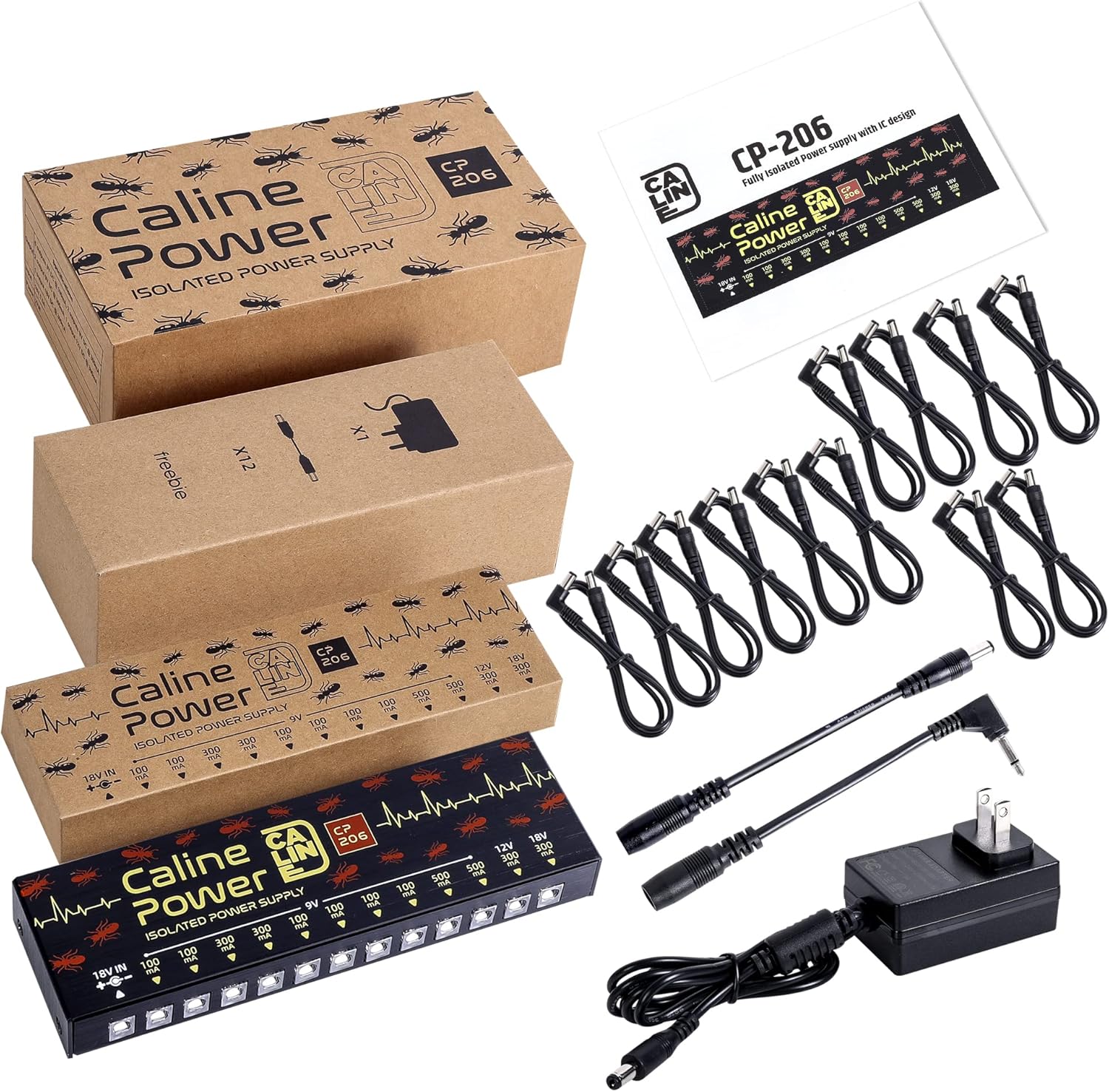

It requires an 18V DC / 1.5A power adapter (included as per package).
