Description

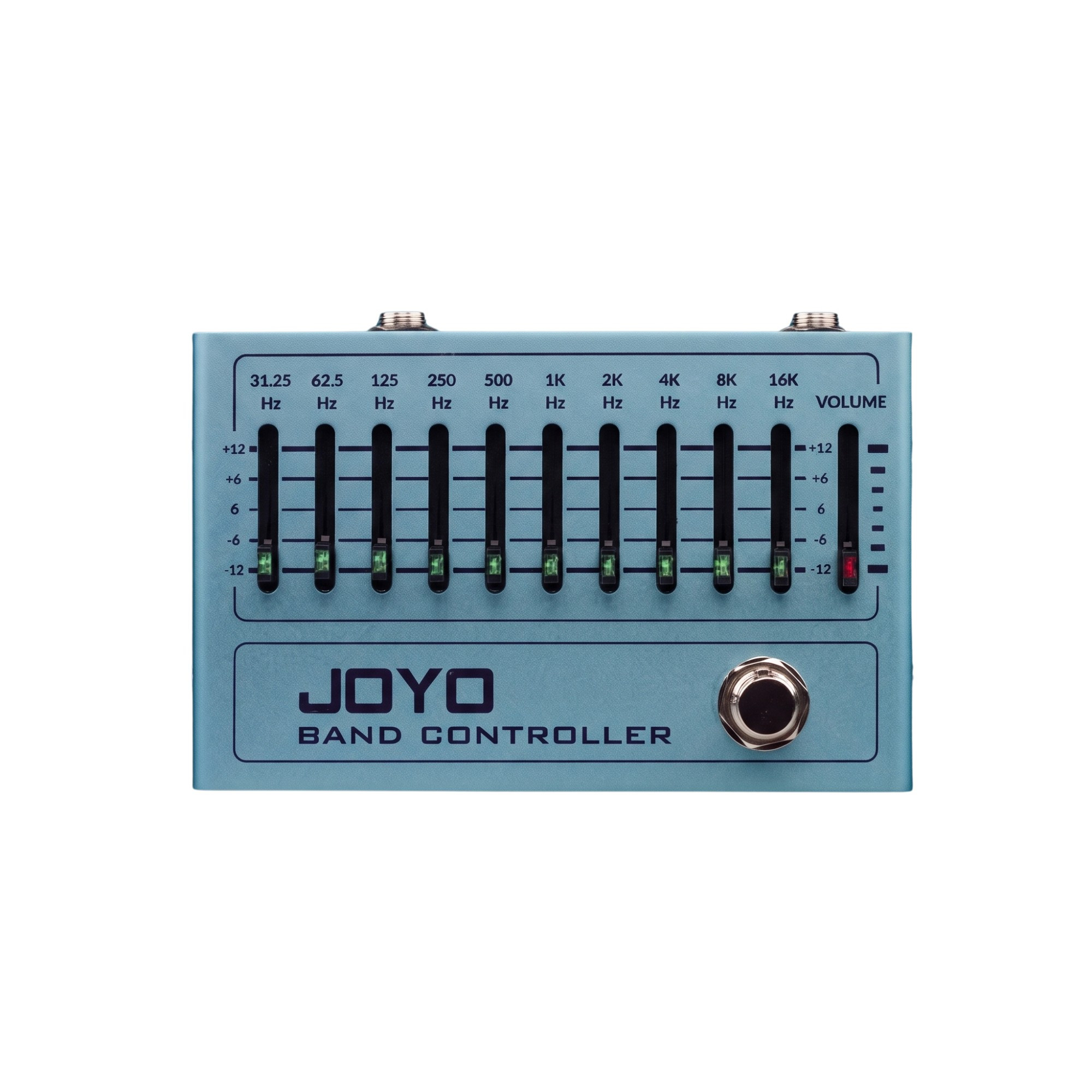

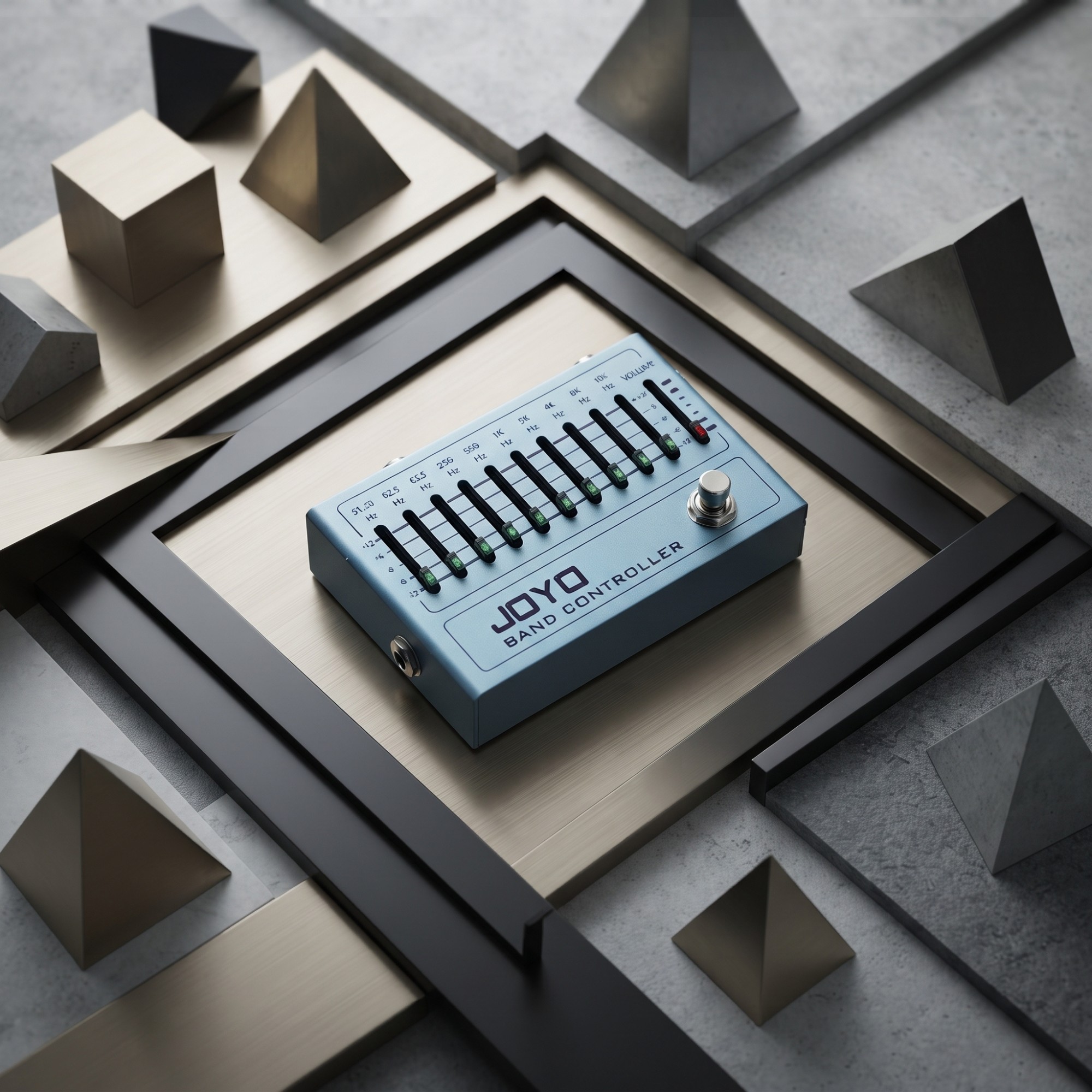

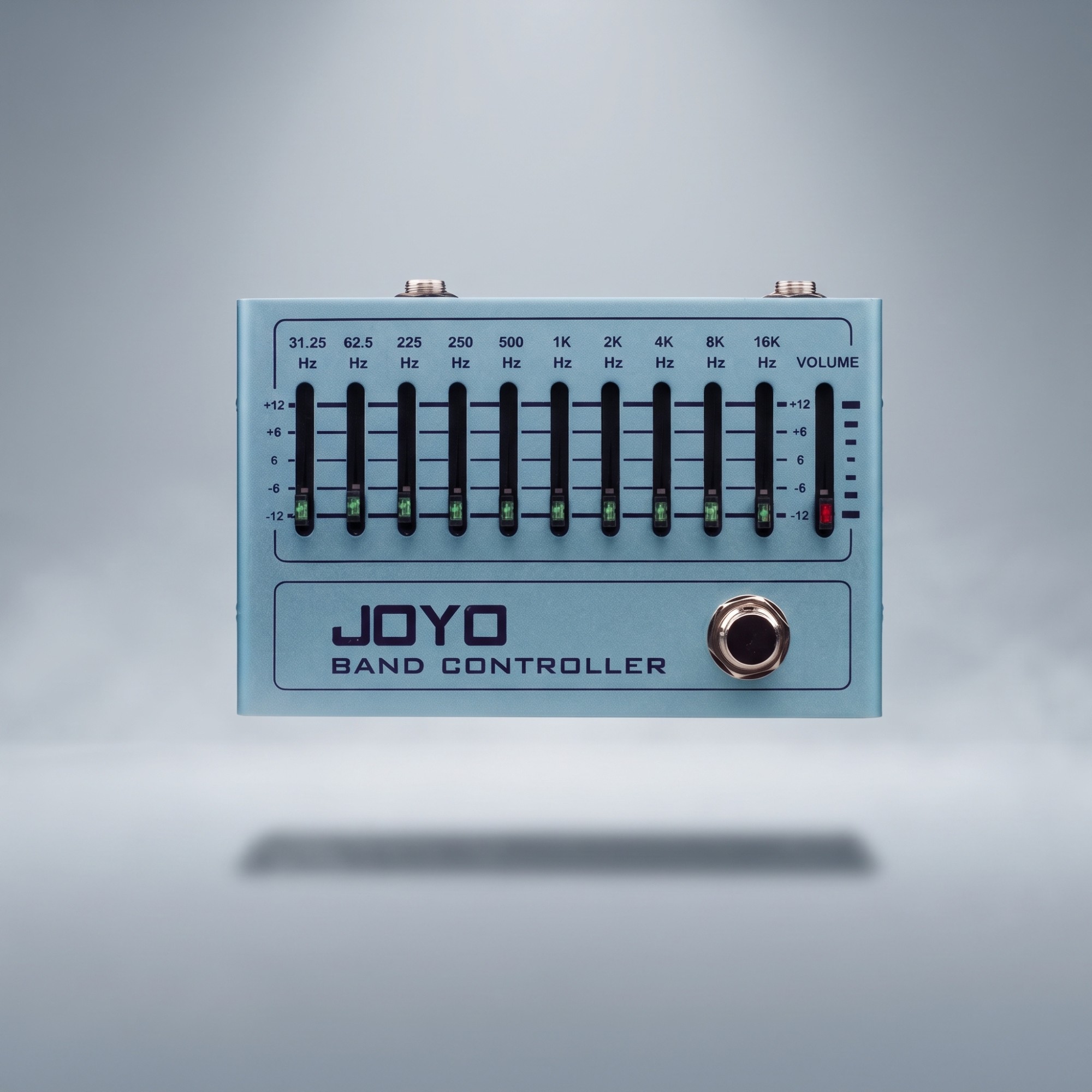

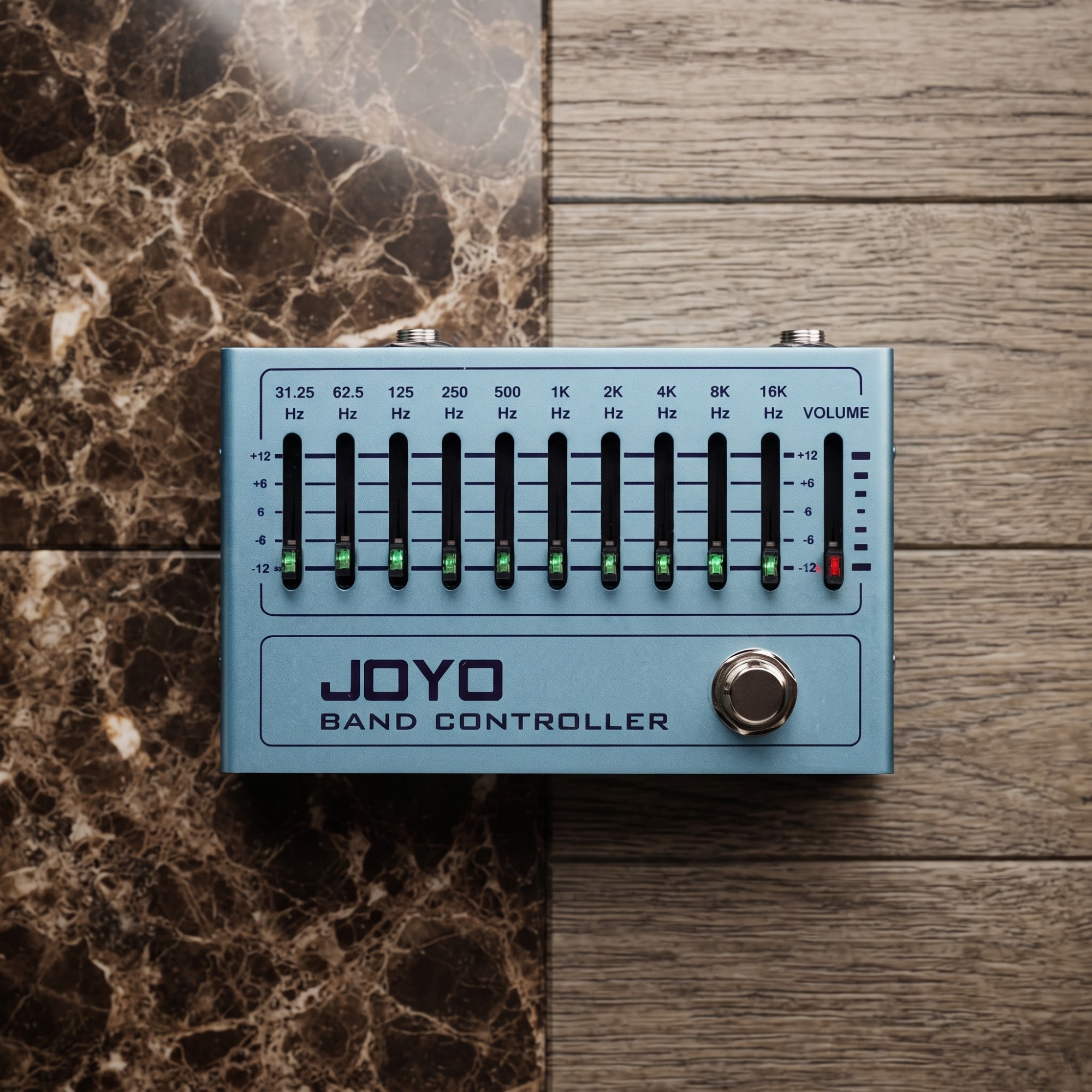

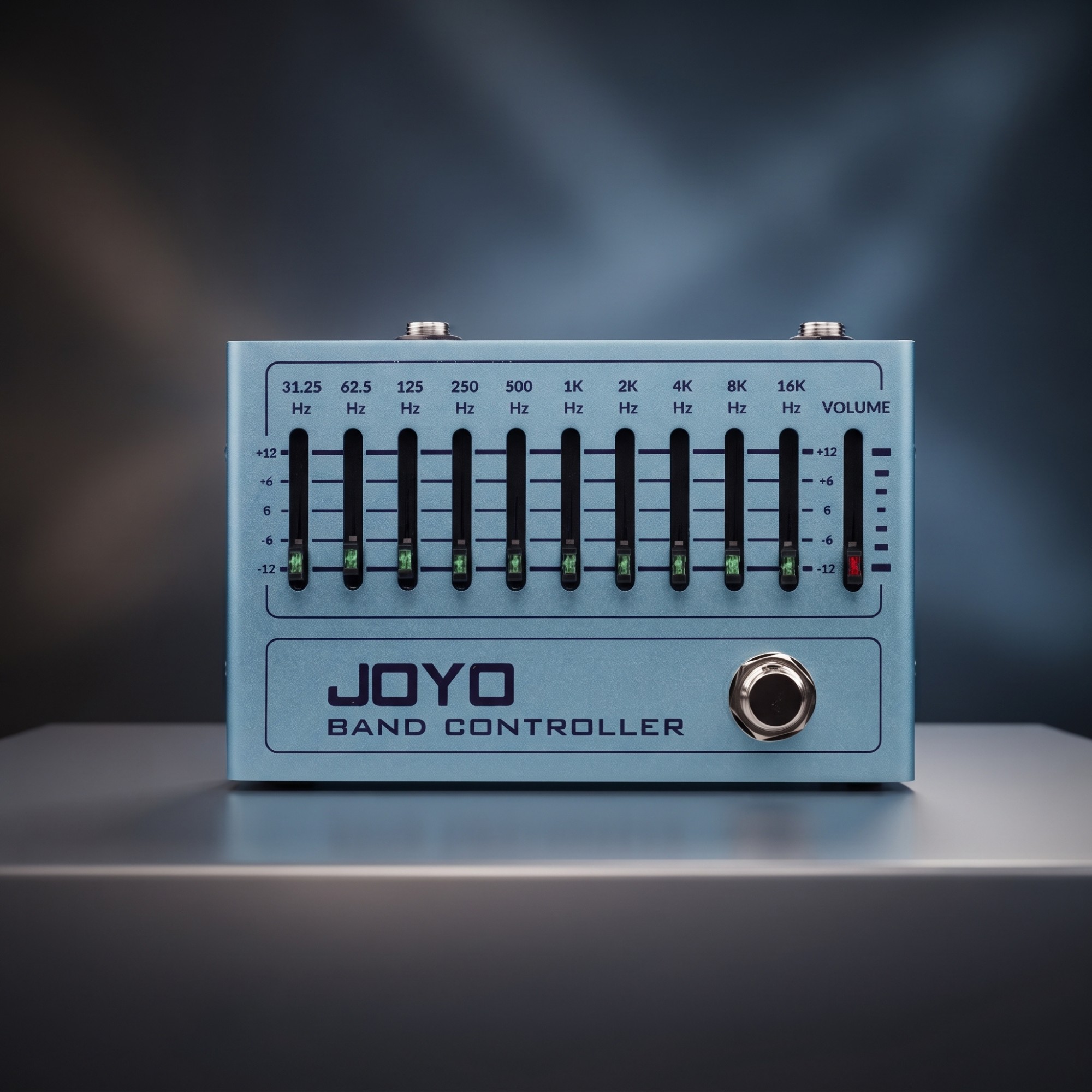

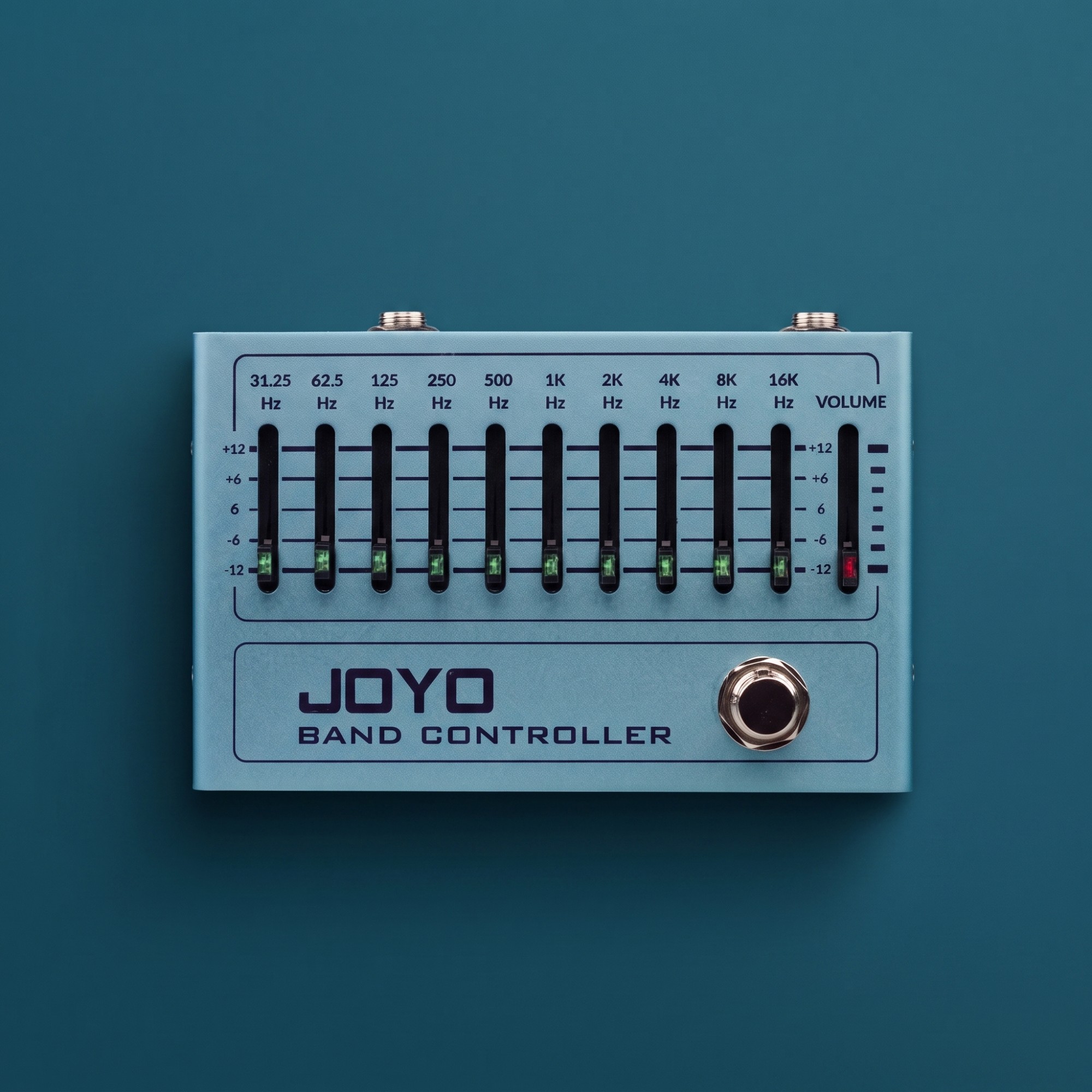

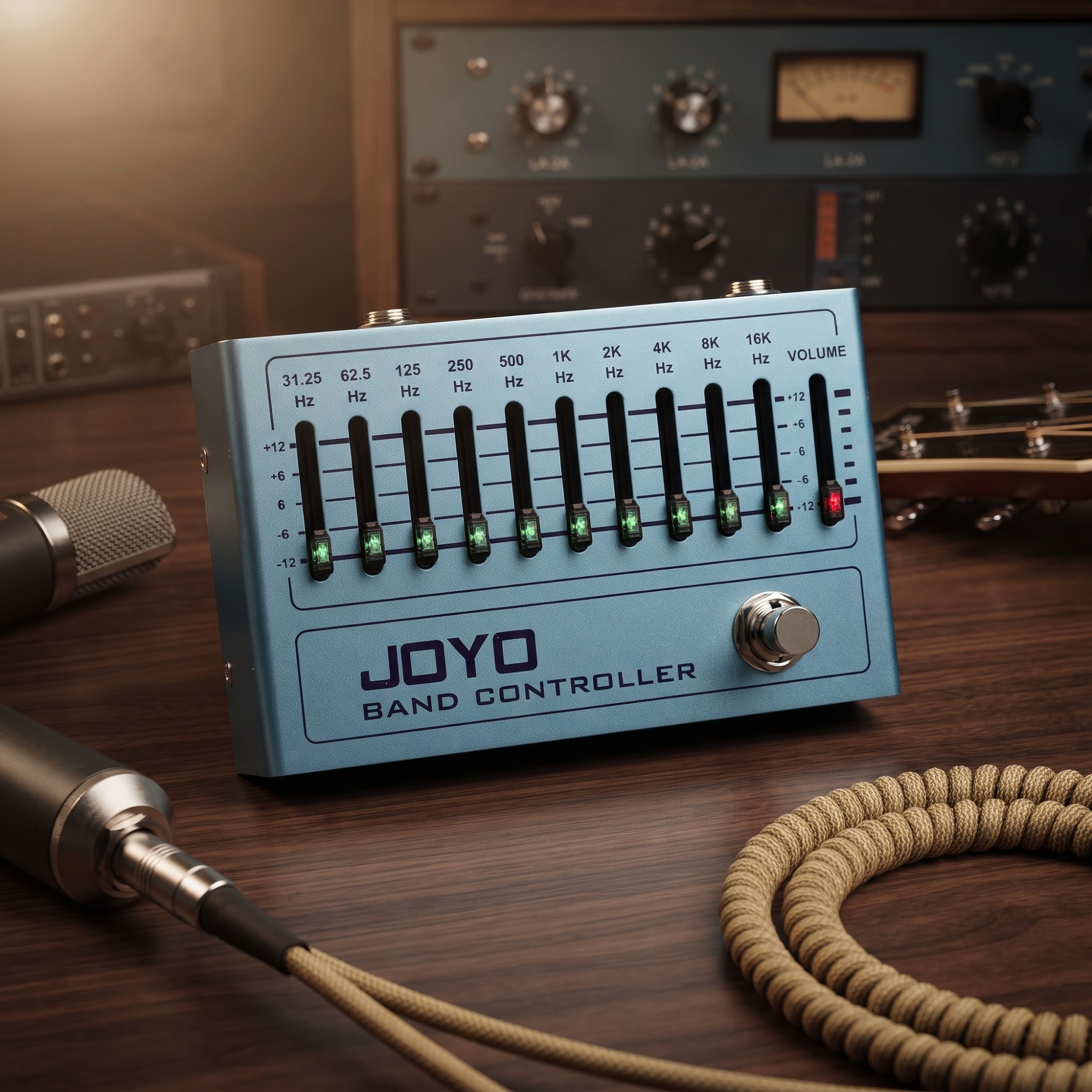

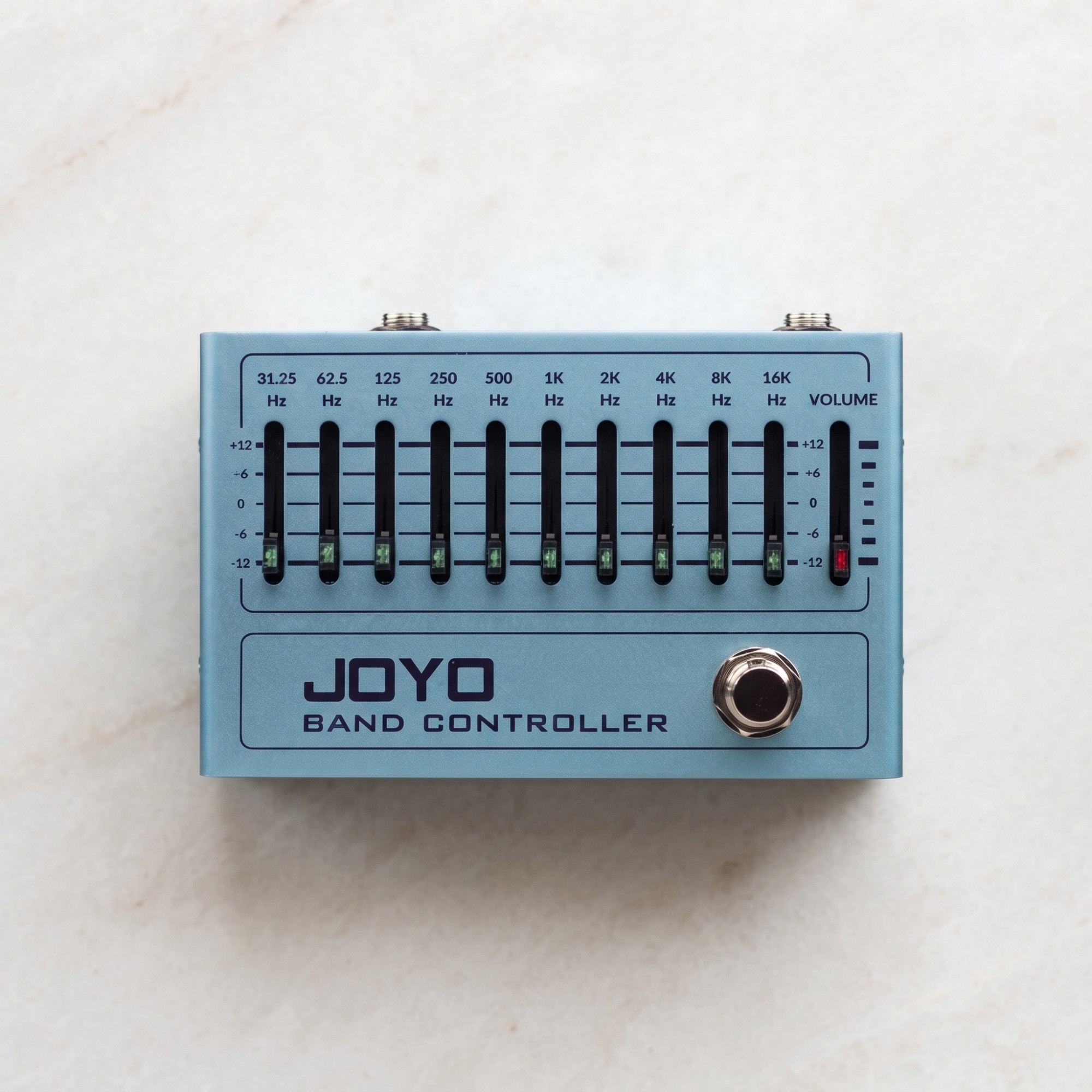

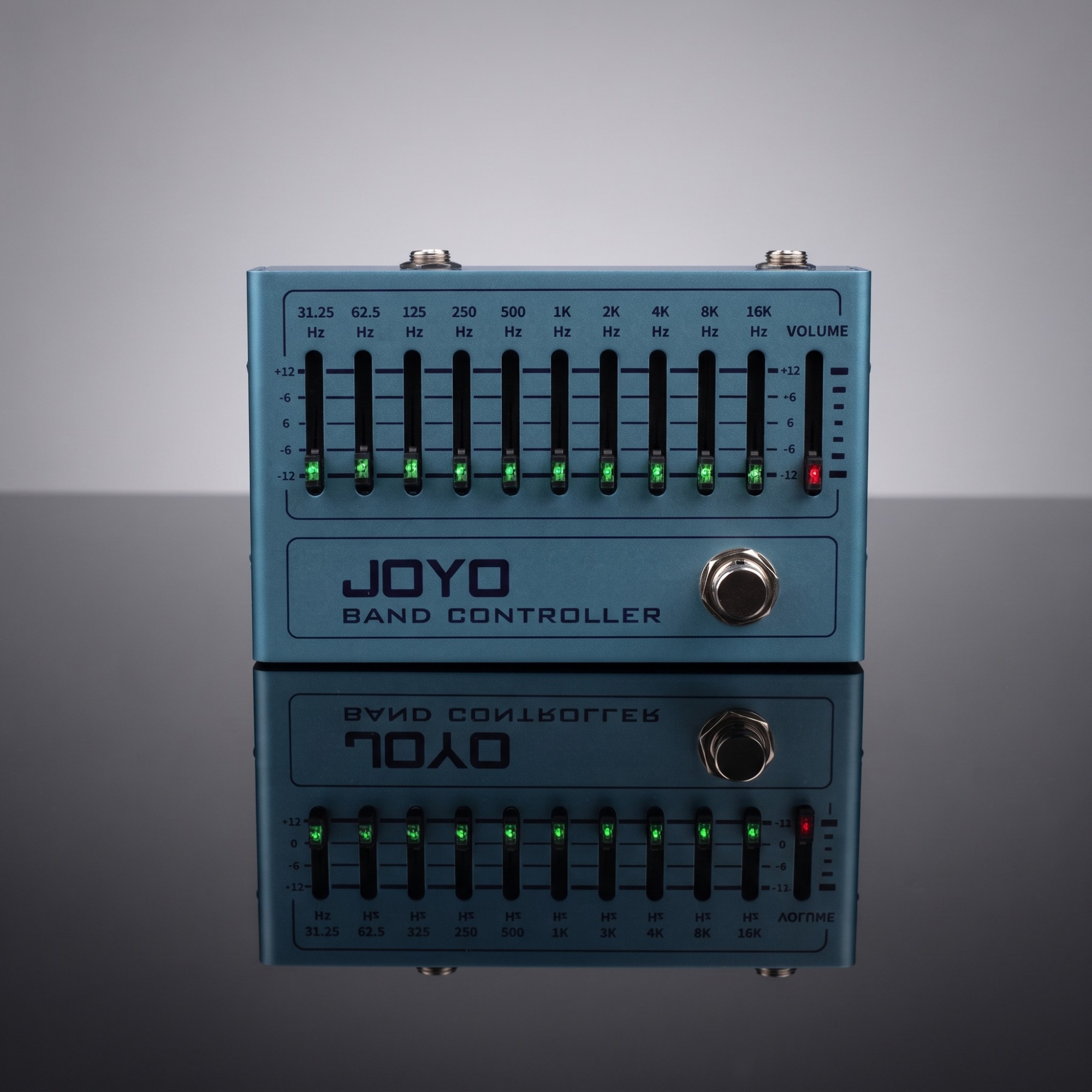

JOYO Band Controller
A true 10-band EQ pedal built for both bass and guitar, with a light-up fader for every band.
This 10-band EQ effect pedal is suitable for both bass and guitar, with a frequency range from 31.25Hz to 16kHz — covering 4-string and 5-string bass as well as 6-string and 7-string guitar. An independent Volume control sits on the pedal's right side, and the LED next to each fader flickers with the signal as you play.
Why You'll Love It
Ten Real Bands, Not Three
31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1K, 2K, 4K, 8K, and 16K — each with its own dedicated fader. That's genuine graphic-EQ resolution in a pedal footprint, letting you notch out problem frequencies or shape a scooped or mid-forward tone with real precision.
Built for Bass and Guitar Alike
The 31.25Hz to 16kHz range is wide enough to cover 4-string and 5-string bass low end as well as 6-string and 7-string guitar top end — one pedal that moves between instruments without leaving frequencies uncovered.
Each fader's LED flickers with your signal, so you can see which bands are actually doing work while you play — useful for dialing in a live mix without staring down at knob positions.
JOYO Technology
JOYO Technology is a professional company specializing in R&D, manufacturing, and marketing of digital products for music education and performance — spanning amplifiers, effects pedals, power supplies, audio interfaces, tuners, and more. JOYO holds its own core acoustic technology and has applied for multiple utility patents, with products trusted by musicians and manufacturers worldwide.
Engineered With Purpose
Compact for a 10-Band EQ
At 125 × 78.5 × 48 mm and 316 g, ten faders and an independent volume control still fit a standard single-pedal footprint on your board.
True Bypass, No Coloration
When the effect is disengaged, your signal passes through untouched — no tone suck, no added noise floor, no surprises in your chain.
DC 9V, Center-Minus
Runs on a standard DC 9V center-negative supply at 30mA — an easy fit on any multi-pedal power supply. No battery compartment; designed for dedicated PSU use.
Three LED Modes
Choose Sync, Always, or Off for the status indicator — match it to your stage setup or keep it dark for late-night practice.
Specifications
| Effect Type | Equalizer |
| EQ Bands | 10 (31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1K, 2K, 4K, 8K, 16K) |
| Instrument Range | 4/5-string bass, 6/7-string guitar |
| Footswitches | 1 |
| Input Jack | 6.35mm |
| Output Jack | 6.35mm |
| Input Impedance | 1MΩ |
| Output Impedance | 100Ω |
| Rated Current Consumption | 30mA |
| Working Voltage | DC 9V (center minus) |
| Signal Bypass Type | True Bypass |
| LED Mode | Sync, Always, Off |
| Battery Powered | No |
| Dimensions | 125 × 78.5 × 48 mm |
| Weight | 316 g |
Frequently Asked Questions
Can I use this pedal for bass guitar?
Yes. The frequency range runs from 31.25Hz to 16kHz, which covers both 4-string and 5-string bass as well as 6-string and 7-string guitar.
What does the independent Volume knob do?
It sits on the pedal's right side as a master output level control, separate from the 10 EQ bands, so you can set an overall boost or cut after shaping your tone.
Is this pedal true bypass?
Yes. When switched off, your signal passes straight through with no buffering or tonal coloration.
What power supply do I need?
A standard DC 9V center-minus adapter, or a multi-output isolated power supply with at least 30mA of headroom per output. There's no battery compartment.
What do the LEDs next to each fader do?
Each band has its own LED that flickers with your signal in that frequency range, giving you a quick visual read on which bands are active as you play.
