| PSR-I300 | ||
|---|---|---|
| Body | Color | Metallic Dark Gray |

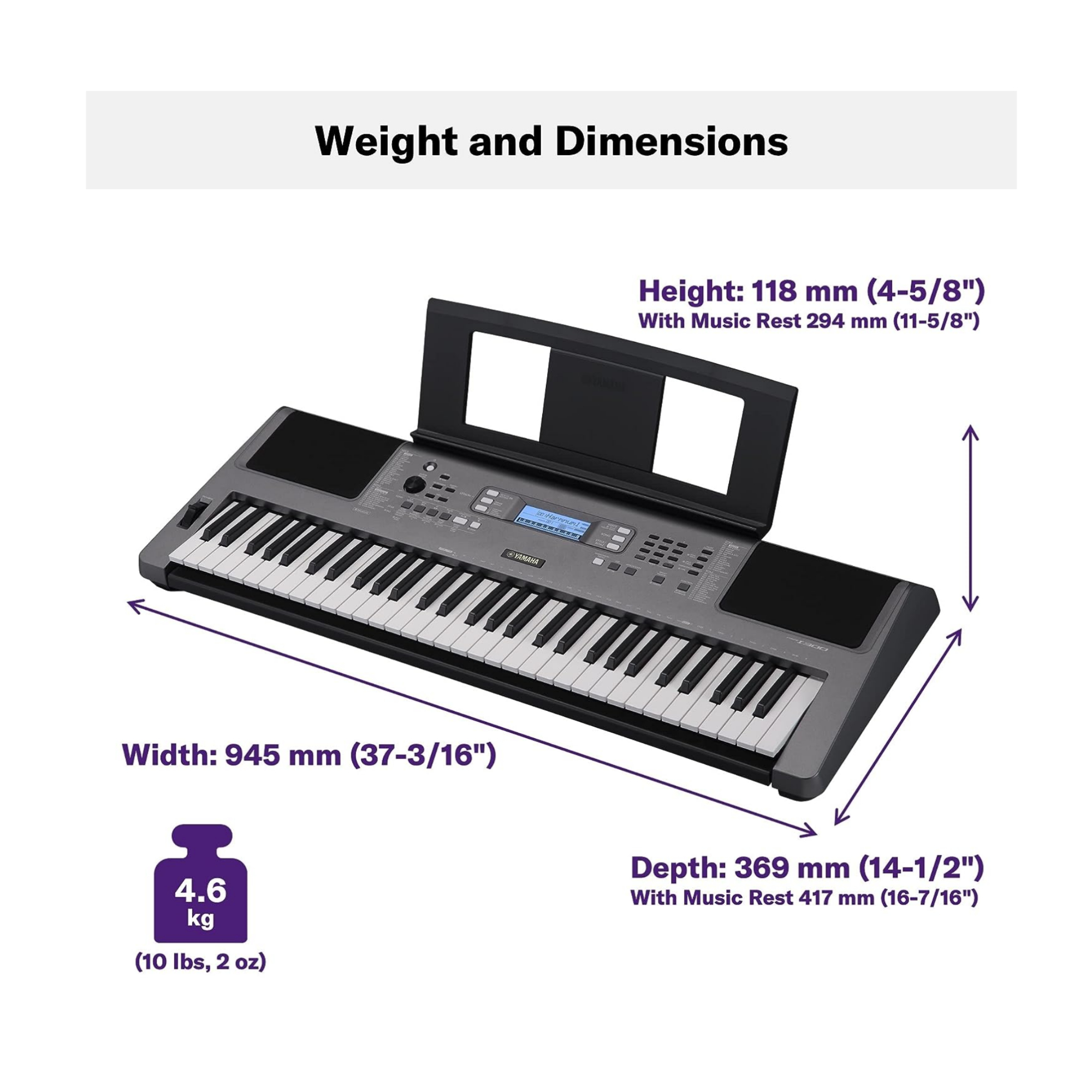

| Dimensions | Width | 945 mm (37-3/16”) |
| Dimensions | Width | 945 mm (37-3/16”) |
| Height | 118 mm (4-5/8”) | |
| Depth | 369 mm (14-1/2”) | |
| Weight | Weight | 4.6 kg (10 lbs. 2 oz.) (not including batteries) |
| Keyboard | Number of Keys | 61 |
| Touch Response | Yes (Soft, Medium, Hard, Fixed) | |
| Type | Organ Style | |
| Other Controllers | Pitch Bend | Yes |
| Control Knobs | Yes | |
| Display | Type | LCD |
| Backlight | Yes | |
| Language | English | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 48 |
| Preset | Number of Voices | 644 (250 Panel Voices + 29 Drum/SFX kits + 20 Arpeggio + 345 XGlite Voices) |
| Featured Voices | 30 Indian Voices, 15 Super Articulation lite Voices, 6 Sweet! Voices, 6 Cool! Voices, 3 Live! Voices | |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Types | DSP | 38 types |
| Reverb | 12 types | |
| Chorus | 5 types | |
| Master EQ | 6 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Panel Sustain | Yes | |
| Melody Suppressor | Yes | |
| Duo | Yes | |
| Preset | Number of Preset Styles | 224 (Incl. Indian 30 Styles) |
| Fingering | Smart Chord, Multi finger | |
| Style Control | ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL | |
| Other Features | One Touch Setting (OTS) | Yes |
| Music Database | 220 (Incl. Indian 50 music) | |
| Expandability | Expansion Style | 10 |
| Compatibility | Style File Format (SFF) | |
| Preset | Number of Preset Songs | 164 (Incl. 10 Raga Scale Songs) |
| Recording | Number of Songs | 5 |
| Number of Tracks | 2 | |
| Data Capacity | Approx. 10,000 notes | |
| Compatible Data Format | Playback | SMF (Formats 0 & 1) |
| Recording | Original File Format | |
| Lesson/Guide | Lesson/Guide | KEYS TO SUCCESS, Lesson 1–3 (Listening, Timing, Waiting), Phrase Repeat, A-B Repeat, Chord Dictionary, Touch Tutor, Chord Study, Chord Progression |
| Demo | 3 Demo Songs | |
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Buttons | 9 |
| Control | Freeze | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 - 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | |
| Riyaz (Tabla/Tanpura Pattern) | Preset | 15 |
| Sections | 3 | |
| Miscellaneous | PIANO Button | Yes (HARMONIUM/PIANO Button) |
| Voices | Harmony/Echo | 26 types |
| Arpeggio | 162 types | |
| Storage | Internal Memory | Approx. 1.4 MB |

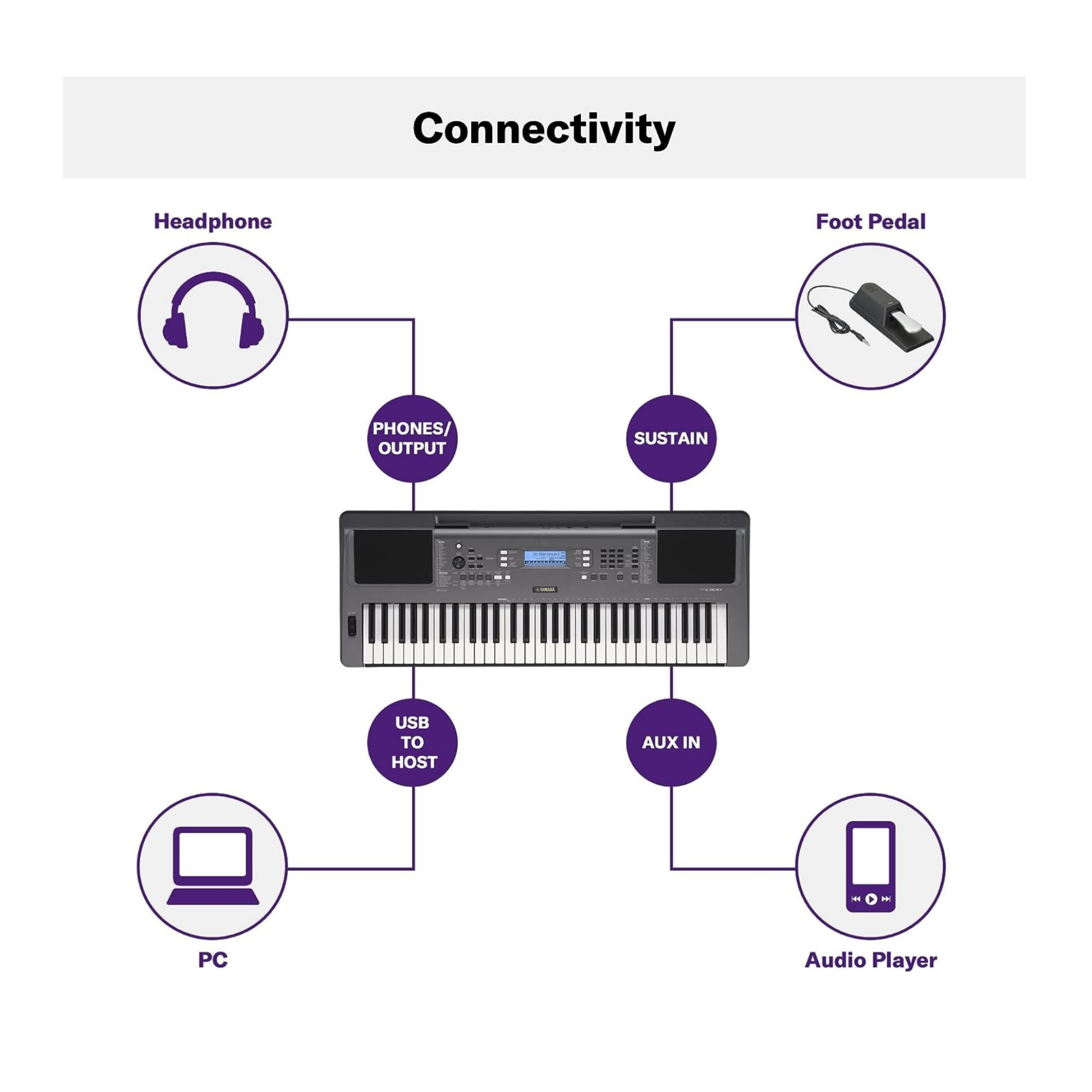

| Connectivity | DC IN | 12 V |
| AUX IN | Stereo mini jack x 1 | |
| Headphones | Standard stereo phone jack (PHONES/OUTPUT) x 1 | |
| Sustain Pedal | Yes | |
| Foot Switch | Yes (Sustain, Arp Hold, Sus+ArpH, Articulation, Sostenuto) | |
| USB TO HOST | Yes (MIDI/Audio) | |
| OUTPUT | Standard stereo phone jack (PHONES/OUTPUT) x 1 | |
| Amplifiers | 2.5 W + 2.5 W | |
| Speakers | 12 cm x 2 | |
| Power Supply | AC Adaptor (PA-130, PA-3C, or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries) | |
| Power Consumption | 5 W (When using PA-130 AC adaptor) | |
| Auto Power Off Function | Off/5/10/15/30/60/120 (minutes) | |
| Included Accessories | Music Rest | Yes |
| Song Book | Can be downloaded from Yamaha web site | |
| Power Adaptor | Yes | |
| AC Adaptor | PA-130 or an equivalent recommended by Yamaha | |
