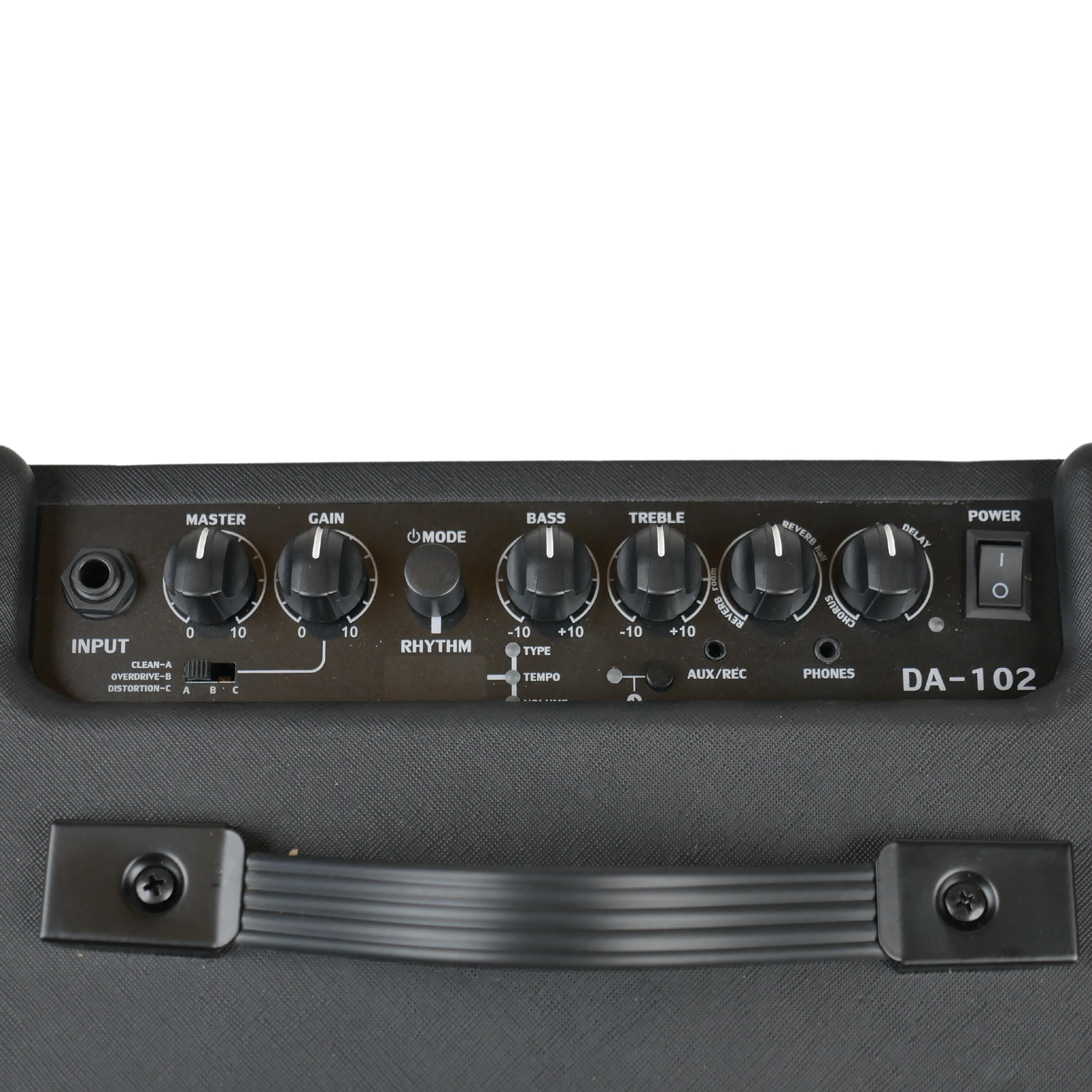

- Connects a 6.35 mm input audio source
- MASTER: Adjusts the total volume
- GAIN: Switches between A/B/C gain functions
- A: Clean tone
- B: Overdrive indication
- C: Distortion indication
- MODE: Press for 3 seconds to toggle the drum adjustment function
- Type: Selects from 20 drum effects
- Tempo: Sets drum speed (0-220)
- Beat: Adjusts the measure
- Volume: Drum volume (V0-V32)
- BASS: Adjusts bass levels
- TREBLE: Adjusts treble levels
- REVERB: Adjusts reverberation for F-ROOM in the first channel
- CHORUS: Adjusts the chorus effect in the first channel
- SELECT: Switches channel mode
- PHONES: Headphone jack
- AUX/REC: Connects to audio output
- Bluetooth Control:
- Hold for 5 seconds to enable/disable Bluetooth
- LED flashes when Bluetooth is enabled and paired
- Hold button for 3 seconds to exit Bluetooth mode
- DC Input: Uses a 9V3A power supply
- BLUETOOTH: LED indicator for Bluetooth connection
- RHYTHM: Percussion display
- Version: V5.0
- Frequency Range: 2.402GHz - 2.480GHz
- Connection Distance: Up to 10 meters (straight line)
- Support System: Compatible with Android, iOS, and Windows
- Transmission Power: Class 2, maximum 4 dBm
- Speaker: 6.5-inch full-frequency speaker
- Speaker Impedance: 4Ω
- Sensitivity: 110 dB (+3dB)
- Frequency Response: 20Hz - 20kHz
- Distortion Degree: < 1%
- Rated Power: 15W
- Audio Signal-to-Noise Ratio: > 90 dB
