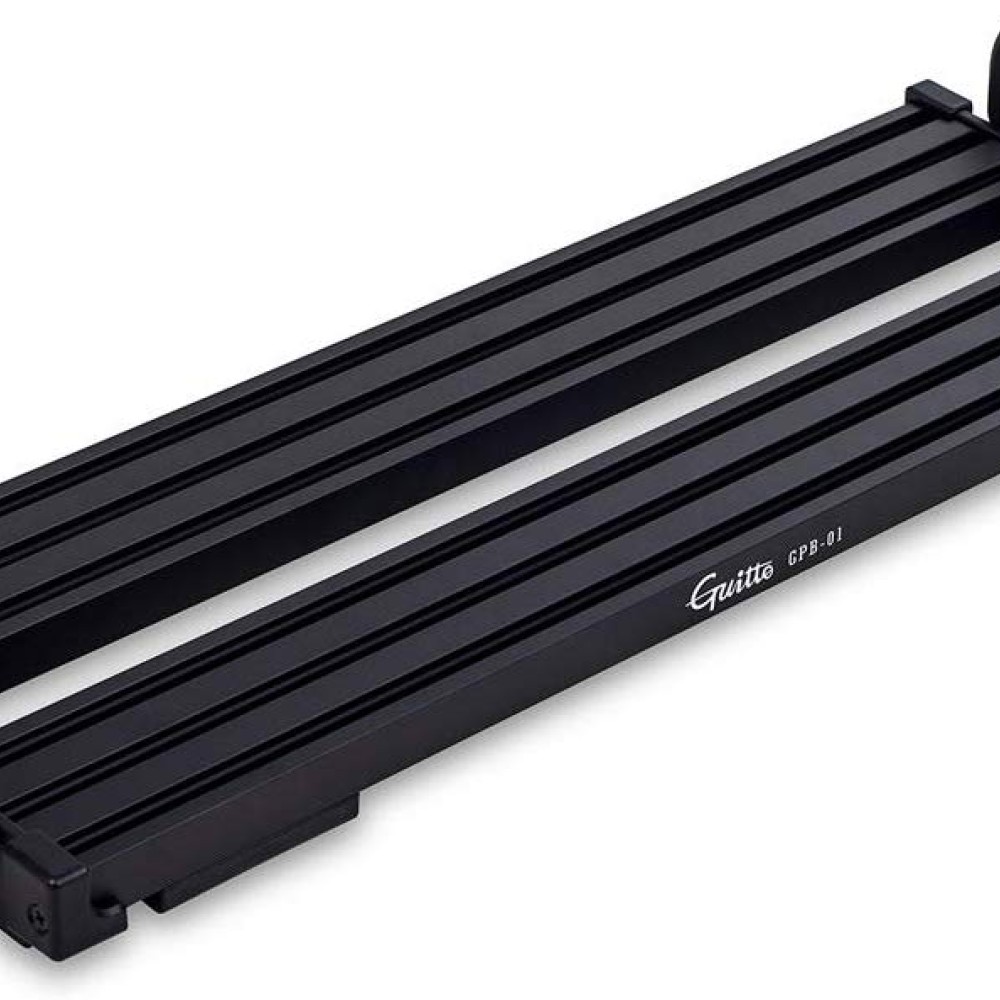

JOYO Guitto GPB-01 Pedalboard with Carry Bag
A compact, Velcro-free aluminium pedalboard for 3-4 full-size pedals - fixture blocks lock each pedal in place, the legs fold away, and a padded GPB-01B bag is included.
Quick Snapshot
Why You'll Love It
Built for the guitarist with a tight core rig - tuner, drive, delay, maybe one more - who wants it locked down, clean, and quick to carry to rehearsal or a gig.
No More Velcro Mess
Fixture blocks clamp each pedal by its edges, so there is no adhesive on the base of your pedals and nothing to peel off when you change your setup or sell a pedal.
Small Footprint, Real Pedals

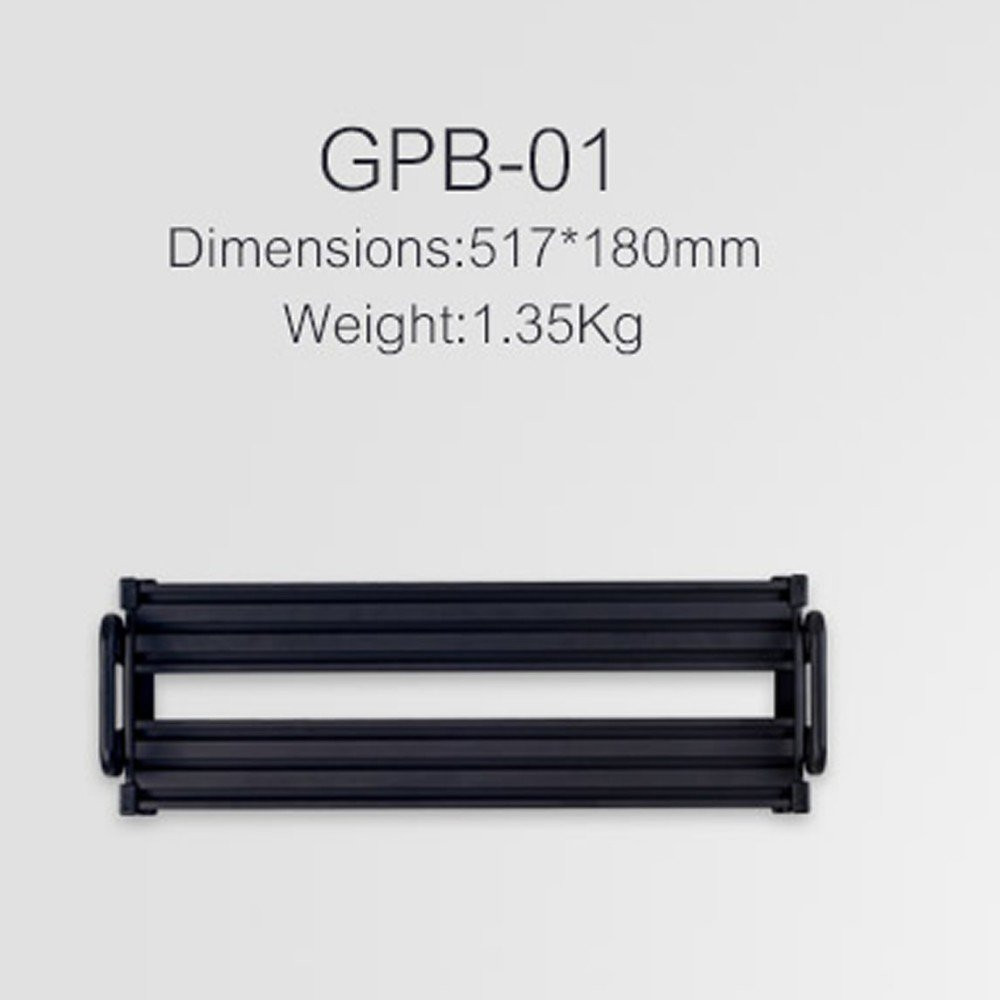

At 517 x 180mm the GPB-01 fits 3 to 4 full-size pedals - enough for a focused rig on a crowded stage, a home desk, or a fly-in gig.
Light and Ready to Travel
The aluminium frame weighs 1.35kg, the handles detach, the legs fold under the chassis, and it all zips into the padded GPB-01B bag with shoulder strap.
Guitto by JOYO
JOYO Technology is a Shenzhen-based company that designs, manufactures and sells guitar gear - best known for its JF series effects pedals, amplifiers and accessories, sold to players across the US, Europe and beyond. In 2019 JOYO launched Guitto as its dedicated accessories line, and its first release was the GPB pedalboard series: aluminium boards that hold pedals with fixture blocks instead of Velcro, with a hidden power supply mount underneath.
Engineered With Purpose
Block-and-Lock Fixture System

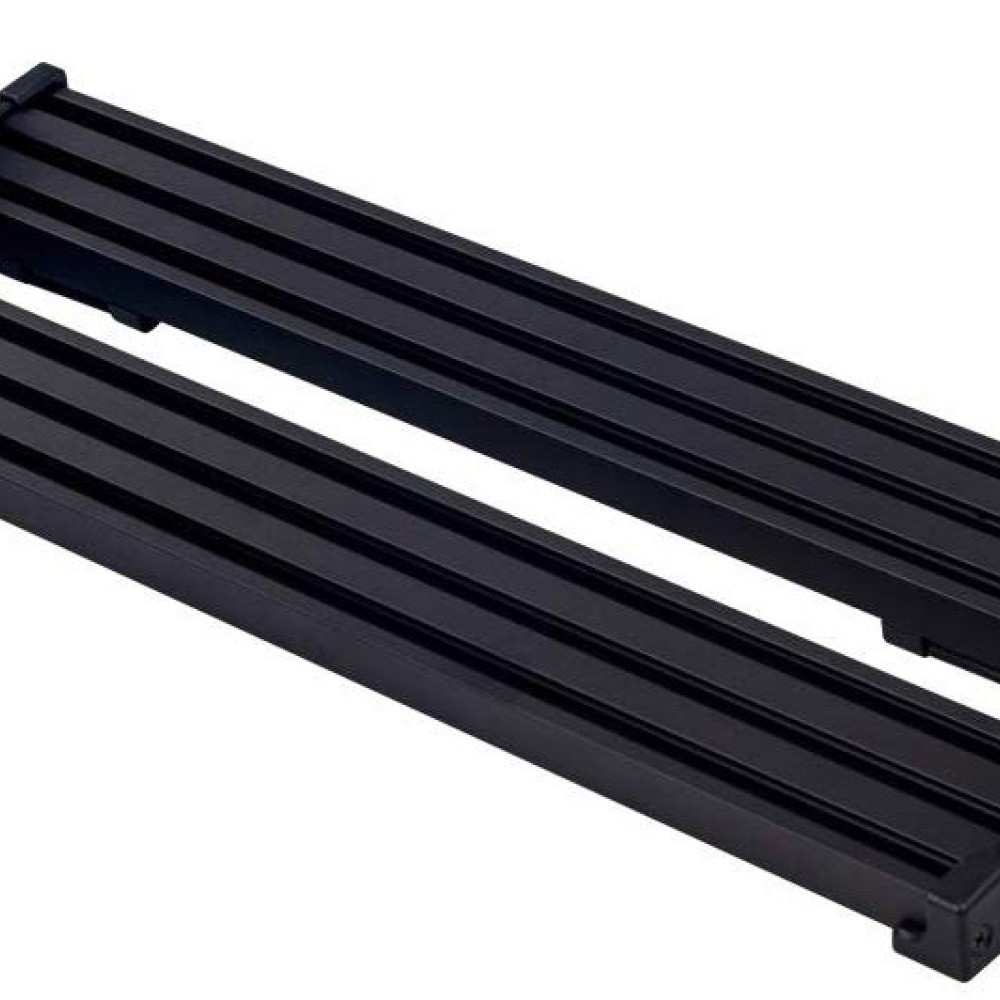

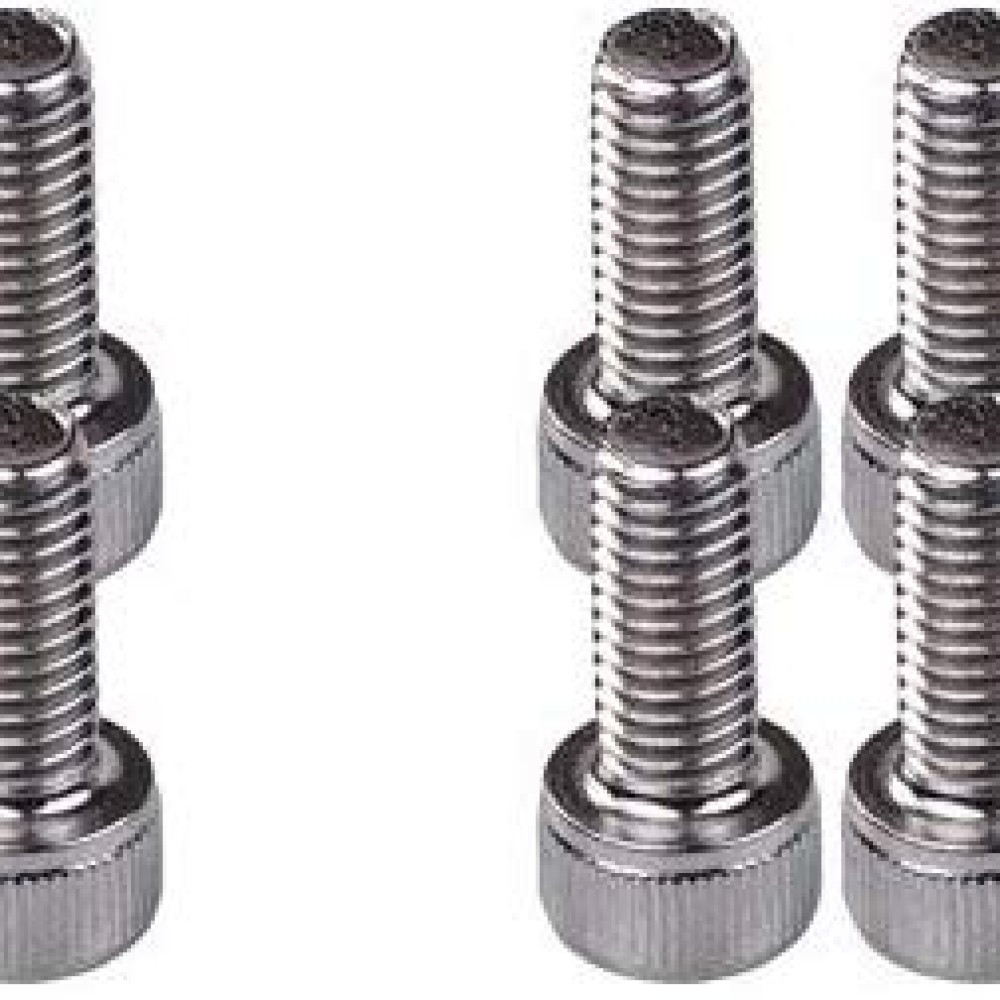

Instead of Velcro, each pedal is held by small fixture blocks that sit in the board's aluminium rail channels. A T-shaped nut slides into the channel, the block is pushed up against the side of your pedal, and a 5mm hex socket screw locks it down with the supplied allen key. The GPB-01 ships with 24 fixture blocks as standard, and because the blocks clamp the pedal's edges rather than its base, your pedals stay clean - no sticky residue when you sell or move them.

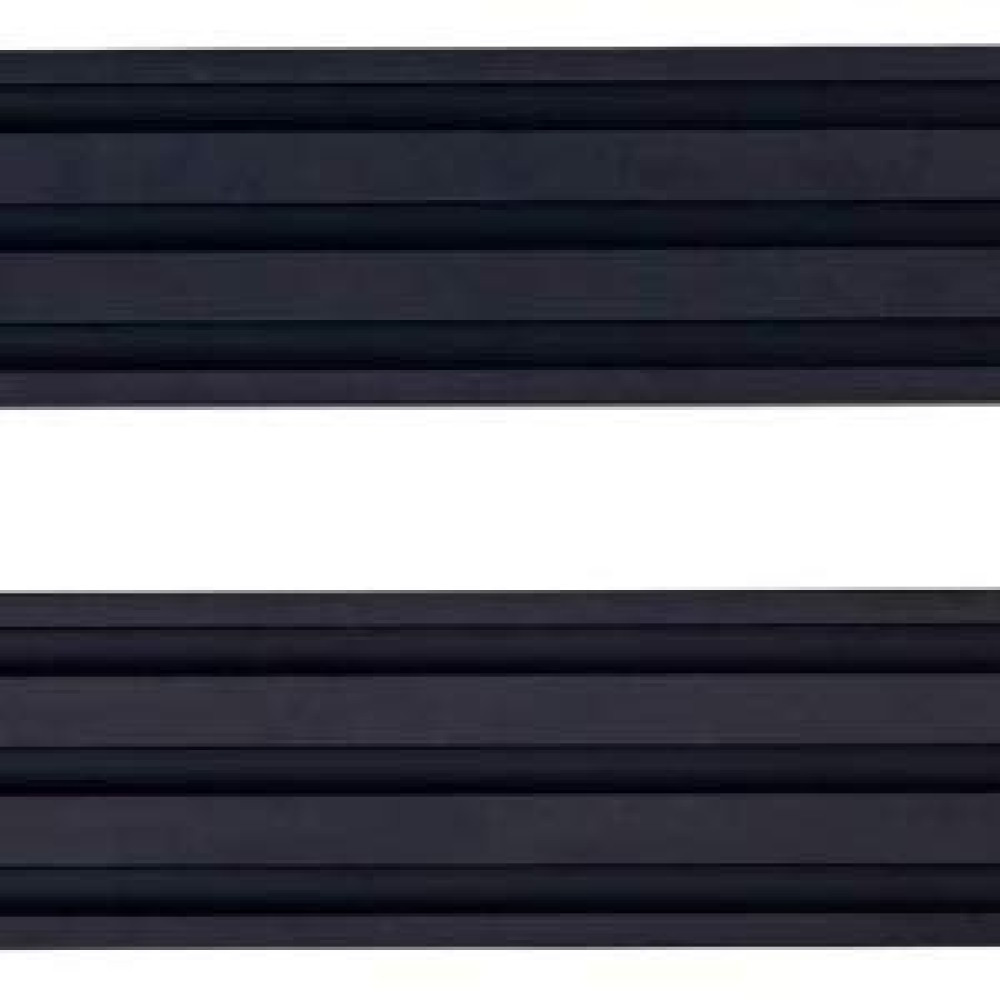

Aluminium Alloy Frame With Fold-Away Legs
The GPB-01 is built from aluminium alloy with an oxidation-treated surface for scratch and fade resistance, and edge protectors run all the way around the frame. JOYO designed it to take heavy stomping on stage. The feet lock down to angle the board toward you for easier switching, then fold flat and tuck under the chassis so it packs away slim.

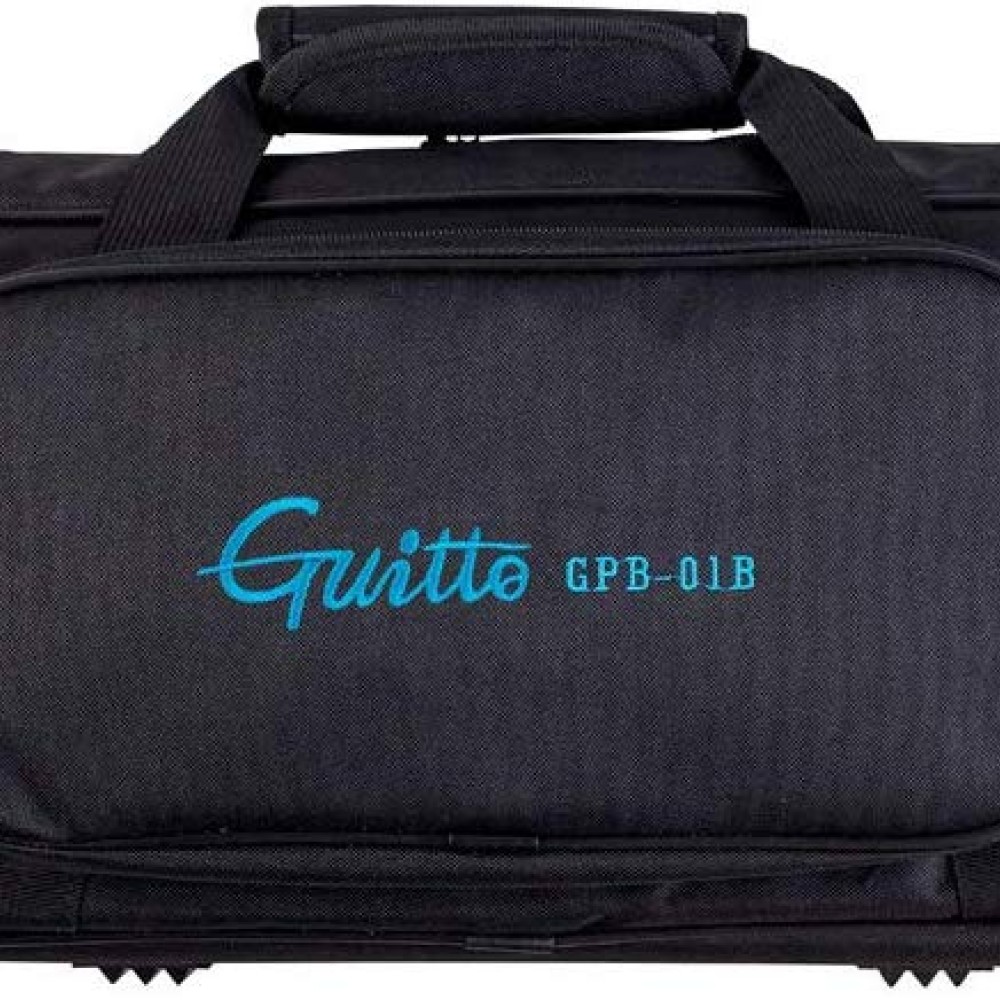

Under-Board Power Supply Mount and GPB-01B Bag
Two power pack latch hooks are included for mounting a pedal power supply underneath the board, out of the way of your pedals and cables. JOYO specifies a supply up to 35mm high x 60mm wide x 145mm long for the under-board mount. When the gig is over, the detachable handles come off and the board goes into the included GPB-01B padded carry bag with shoulder strap.
Specifications
| Brand | JOYO (Guitto accessories line) |
| Model | GPB-01 pedalboard with GPB-01B carry bag |
| Dimensions | 517 x 180mm |
| Pedal Capacity | Around 3-4 full-size pedals |
| Weight | 1.35 kg |
| Material | Aluminium alloy, oxidation-treated surface |
| Colour | Black |
| Pedal Mounting | Fixture blocks (24 included as standard), no Velcro required |
| Legs | Collapsible, lock in place, fold under the chassis |
| Handles | 2, detachable |
| Edge Protection | Edge protectors all around |
| Power Supply Mount | Under-board, via 2 latch hooks (supply up to 35mm high x 60mm wide x 145mm long) |
| Carry Bag | GPB-01B padded bag with shoulder strap |
| In The Box | 1 x GPB-01 pedalboard, 1 x GPB-01B padded carry bag, 2 x handles, 24 x fixture blocks, 25 x T-shaped nuts, 29 x 5mm hexagon socket head cap screws, 1 x L-shaped allen key, 1 x T-shaped allen key, 2 x power pack latch hooks |
Compare Models
| Spec | This Kit GPB-01 |
GPB-02 | GPB-03 |
|---|---|---|---|
| Dimensions | 517 x 180mm | 517 x 332mm | 667 x 332mm |
| Pedal Capacity | 3-4 pedals | 6-8 pedals | 8-12 pedals |
| Weight | 1.35 kg | - | 3.4 kg |
| Fixture Blocks Included | 24 | - | 32 |
| Material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Pedal Mounting | Fixture blocks | Fixture blocks | Fixture blocks |
| Fold-Away Legs | Yes | Yes | Yes |
| Carry Bag | Included | Included | Included, extra pockets |
