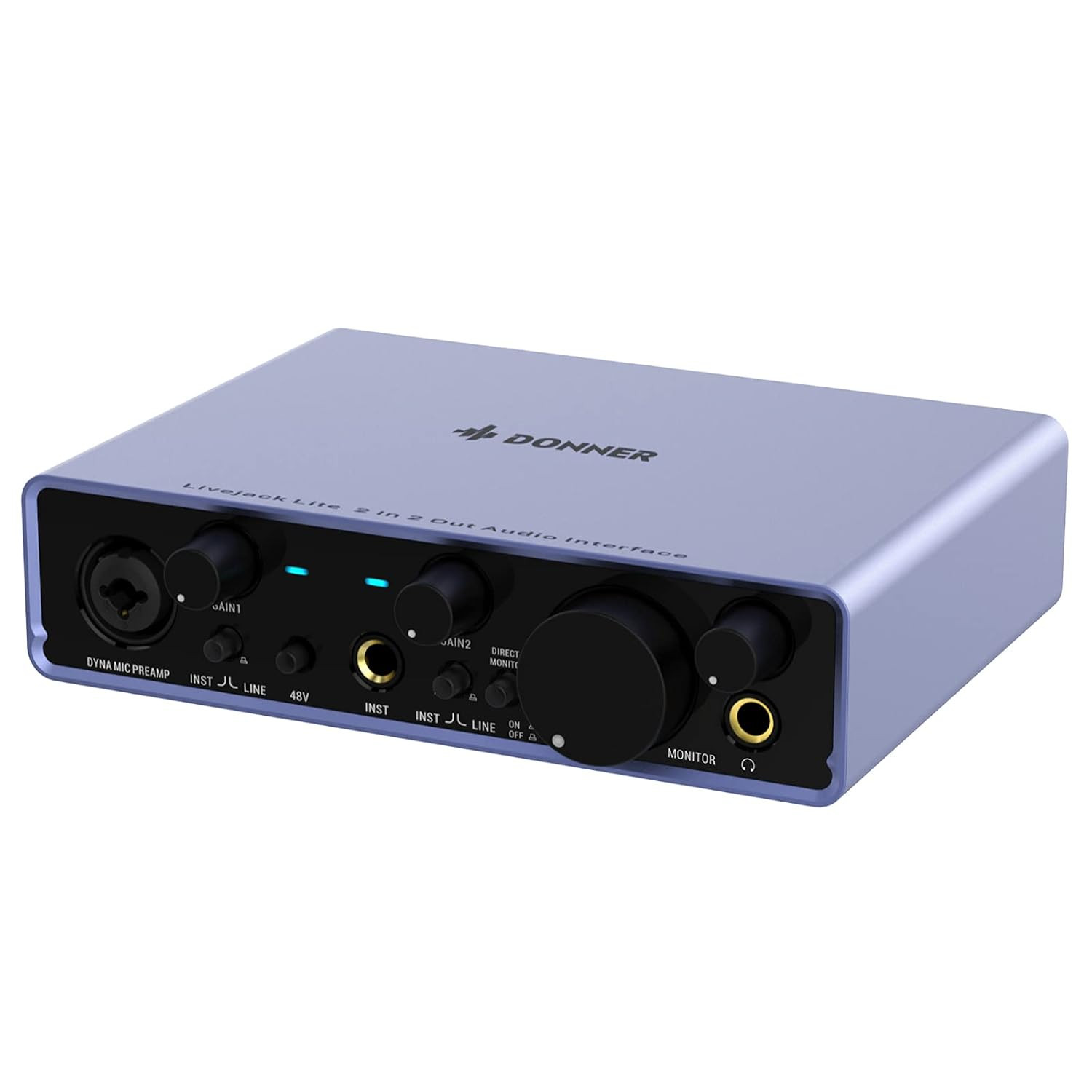

Donner Livejack 2x2 Audio Interface
A 2-in-2-out USB-C audio interface with a Class A DYNA mic preamp, 24-bit/192kHz converters, and TRS balanced outputs - a compact desktop recording setup with no external power needed.
Quick Snapshot
Why You'll Love It
A 2-in-2-out USB-C audio interface with a Class A DYNA mic preamp, 24-bit/192kHz converters, and TRS balanced outputs - a compact desktop recording setup with no external power needed.
A Real Combo Input For Mics And Instruments
Monitor Without Latency
One Cable, No Extra Power Brick
The Donner Standard
Donner Music is a musical instrument and audio gear company founded in Shenzhen, China in 2012, known for making guitars, basses, ukuleles, keyboards, drums, and effects pedals more accessible to beginners and home recording enthusiasts without cutting corners on core build quality. This 2-in-2-out interface brings a Class A mic preamp and an XMOS-chipset-driven headphone/output stage to a compact, bus-powered unit built for a home studio desk.
Engineered With Purpose

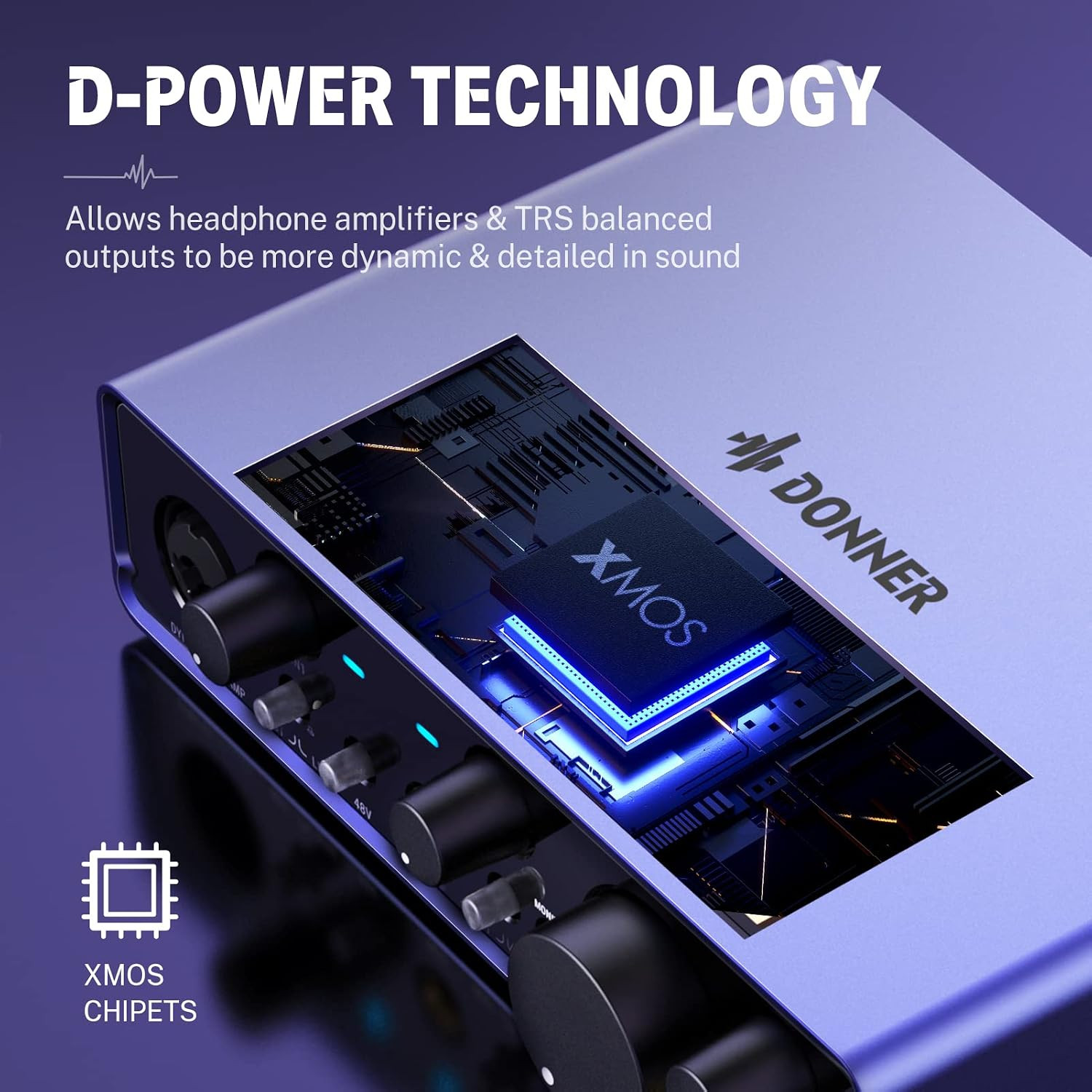

D-Power Technology, Built On XMOS
An XMOS chipset, visible directly in Donner's own product photography, drives what the company calls D-Power Technology, aimed at more dynamic and detailed headphone amp and TRS balanced output performance.

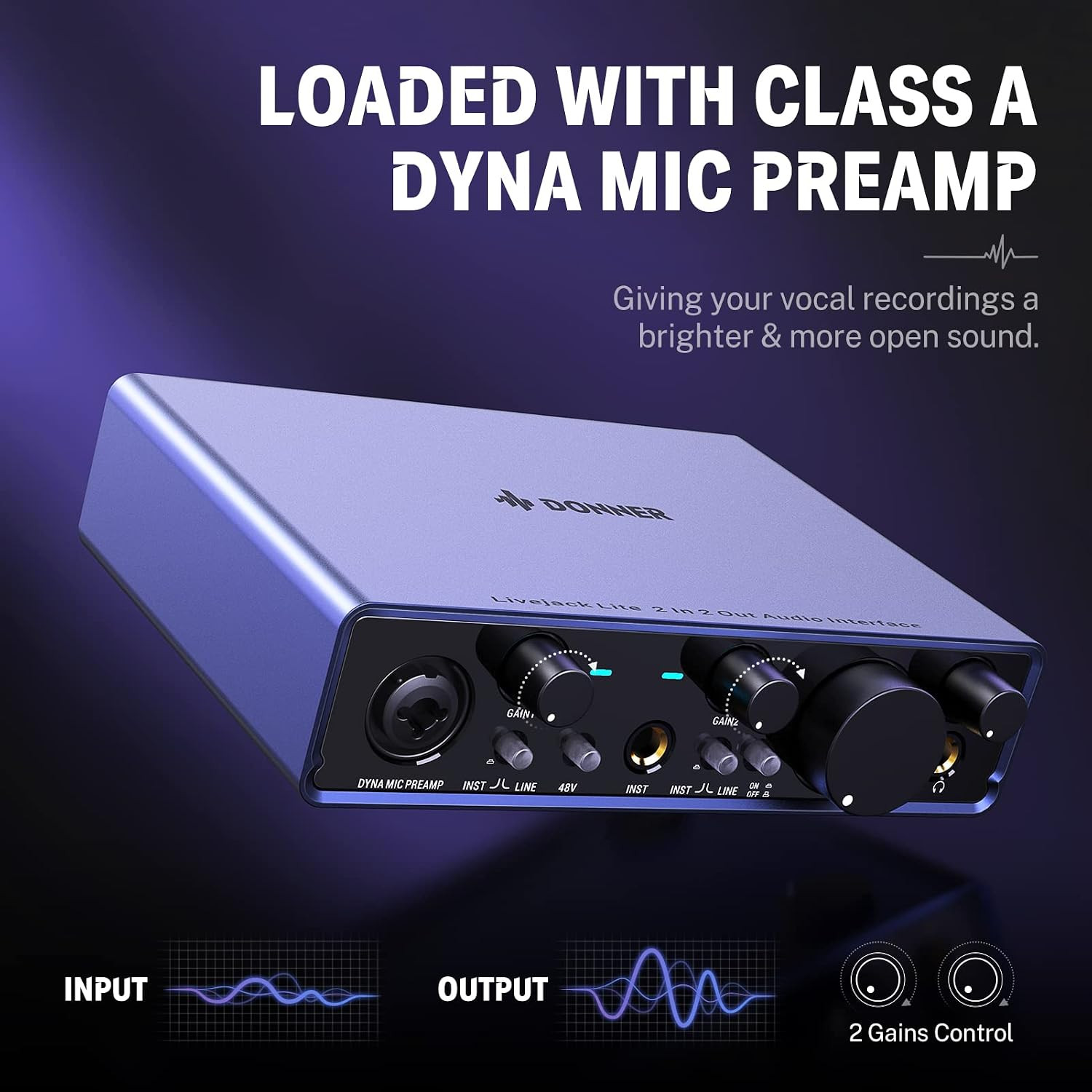

A Class A Preamp For Vocals
The Class A DYNA mic preamp on Input 1 is built specifically to give vocal recordings a brighter, more open sound, with independent gain control over each input.

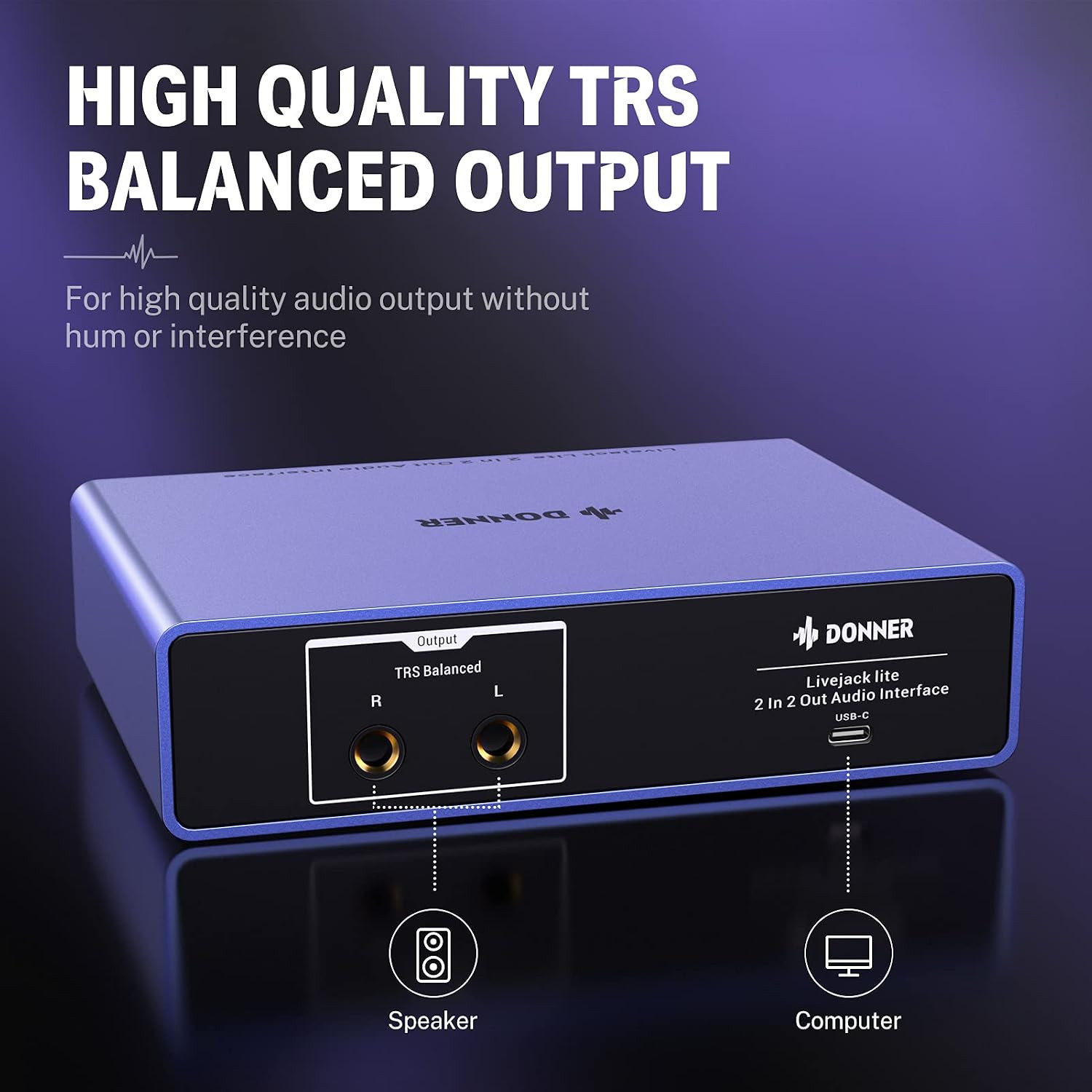

Balanced Outputs, Zero Hum
TRS balanced outputs on the rear panel connect straight to studio monitors without the hum or interference an unbalanced connection can pick up.
Specifications
| Configuration | 2 In / 2 Out |
| Input 1 | XLR / 1/4" TRS Combo, Class A DYNA Mic Preamp |
| Input 2 | 1/4" TS, Instrument/Line Switch |
| Outputs | 2x 1/4" TRS Balanced + Headphone Output |
| Bit Depth / Sample Rate | 24-Bit / 192kHz |
| Phantom Power | 48V Switch |
| Direct Monitoring | Yes, Dedicated Switch |
| Chipset | XMOS (D-Power Technology) |
| Connector | USB-C, Bus-Powered (No External Power) |
| OS Compatibility | Mac (Plug and Play), Windows (ASIO Driver via QR Code) |
| Dimensions | 170 x 42 x 121.5mm |
| Weight | 720g |
Compare Models
| Spec | Livejack-M (Mobile) | This Kit 2 In / 2 Out (Desktop) |
|---|---|---|
| Inputs | 1, XLR Combo | 2 (1 Combo + 1 Instrument) |
| Power | Built-In Battery | Bus-Powered via USB-C |
| Target Use | Mobile / Outdoor Streaming | Fixed Desktop Recording Setup |
| Outputs | Headphone Only | 2x TRS Balanced + Headphone |
| Weight | 0.22lbs (100g) | 720g |
The Livejack-M trades inputs and balanced outputs for a built-in battery and pocket-sized build, aimed at mobile recording. This 2-in-2-out interface is built for a fixed desk setup instead, with two real inputs and balanced monitor outputs for a proper home studio chain.
