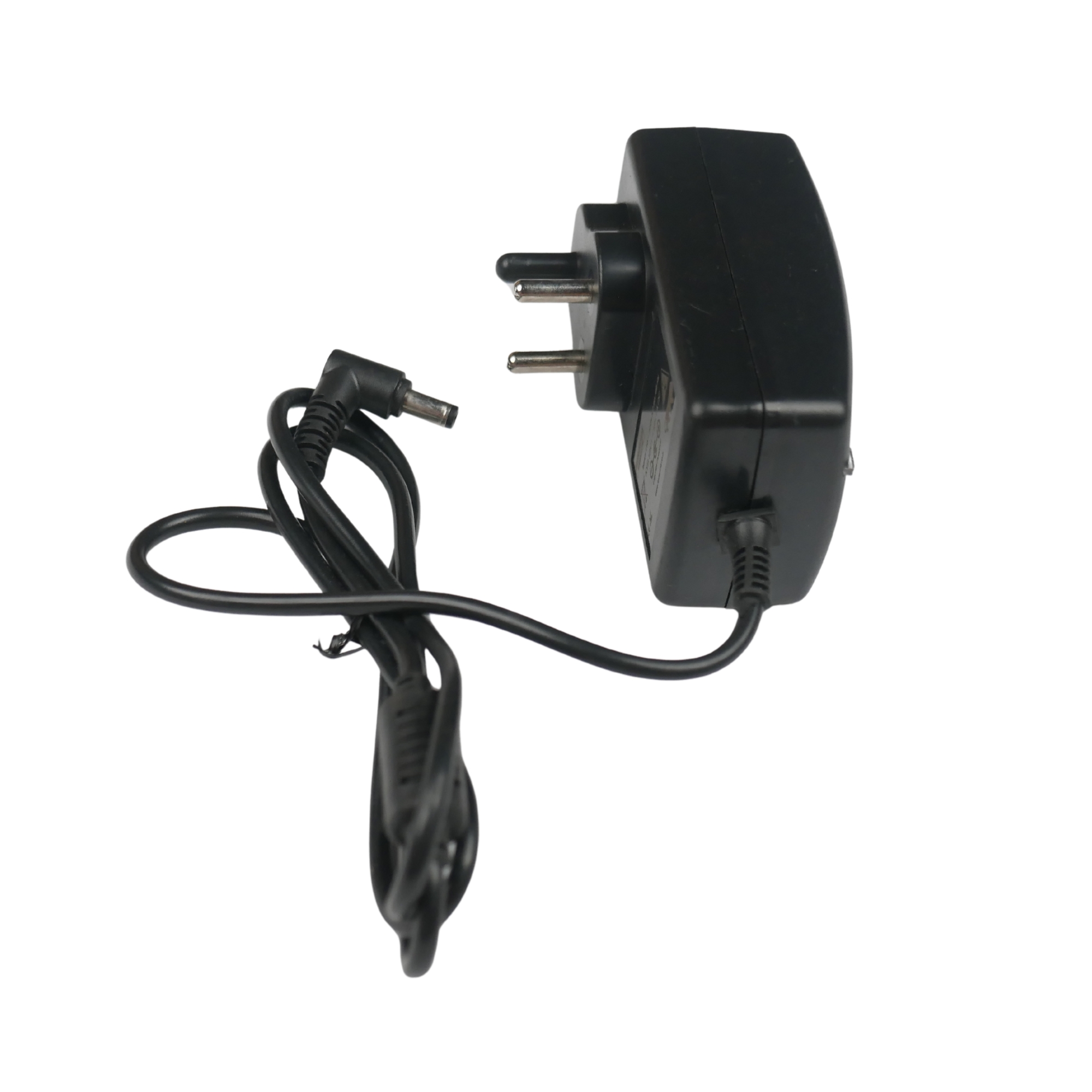

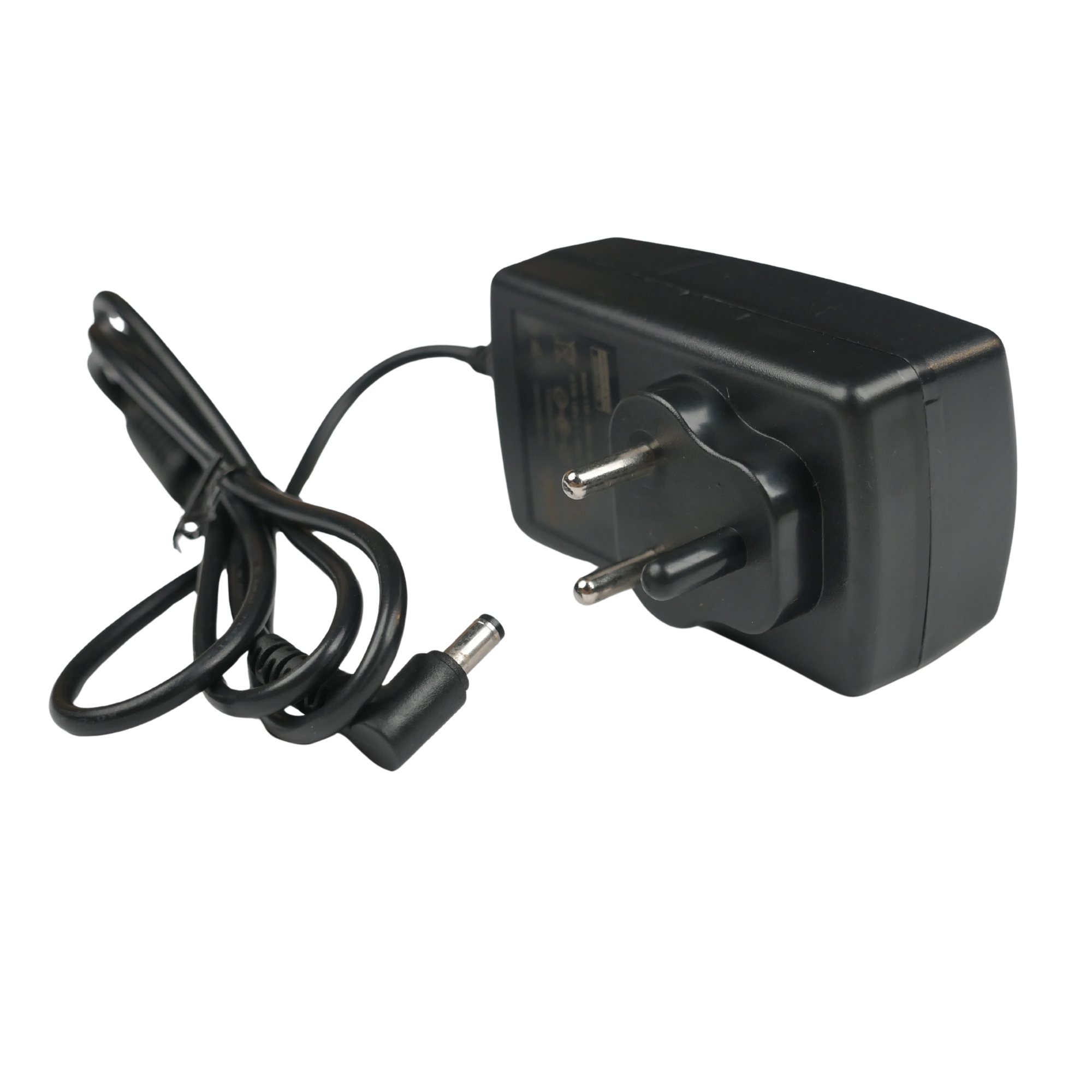

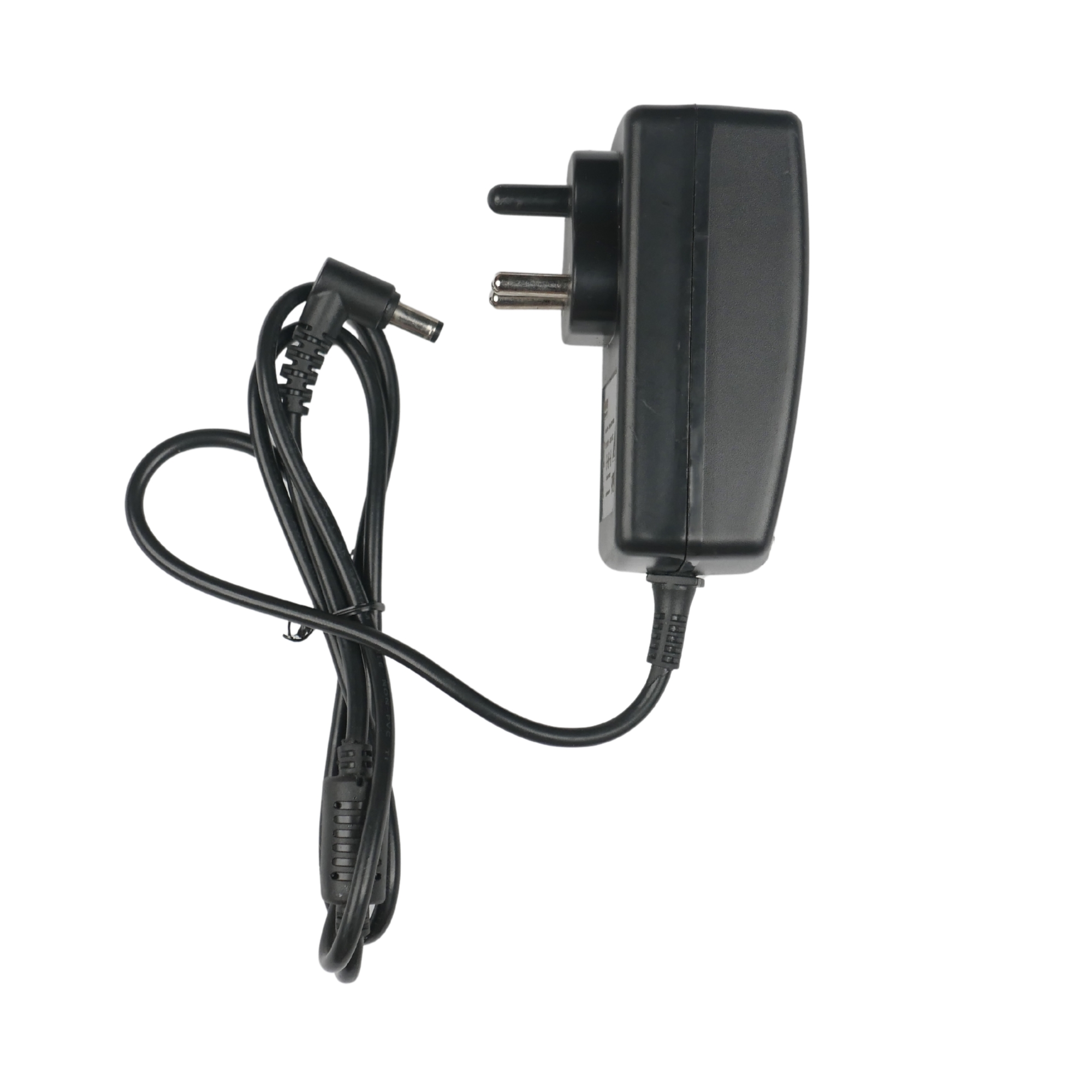

Arowana AudioGlyph PED12V1 12V 1A Center Negative Guitar Processor Power Supply
A 12V 1A center negative power supply for guitar pedals and processors including the Line 6 HX Stomp and Neural DSP Nano Cortex, built in Mumbai with galvanic isolation, ultra-low ripple, a shielded DC lead with ferrite choke and a stabilising third pin for noise-free power.
Quick Snapshot
Why You'll Love It
Generic adapters are built for routers and chargers. The Arowana AudioGlyph PED12V1 is built for guitar pedals and processors - isolated, filtered, protected and made to stay in the socket.
Silent, Hum-Free Power
Generic adapters are built for routers and phone chargers, not audio. The PED12V1 uses true primary-to-secondary galvanic isolation and ultra-low ripple (under 10 mVp-p typical), so high-gain pedals and fuzz stay quiet instead of buzzing with 50 Hz hum and switching whine.
The Right Polarity, Every Time
Factory-moulded center-negative output - the standard for most guitar pedals - with no loose universal tips that can slip or invert polarity and damage your gear.
Stays Put In The Socket

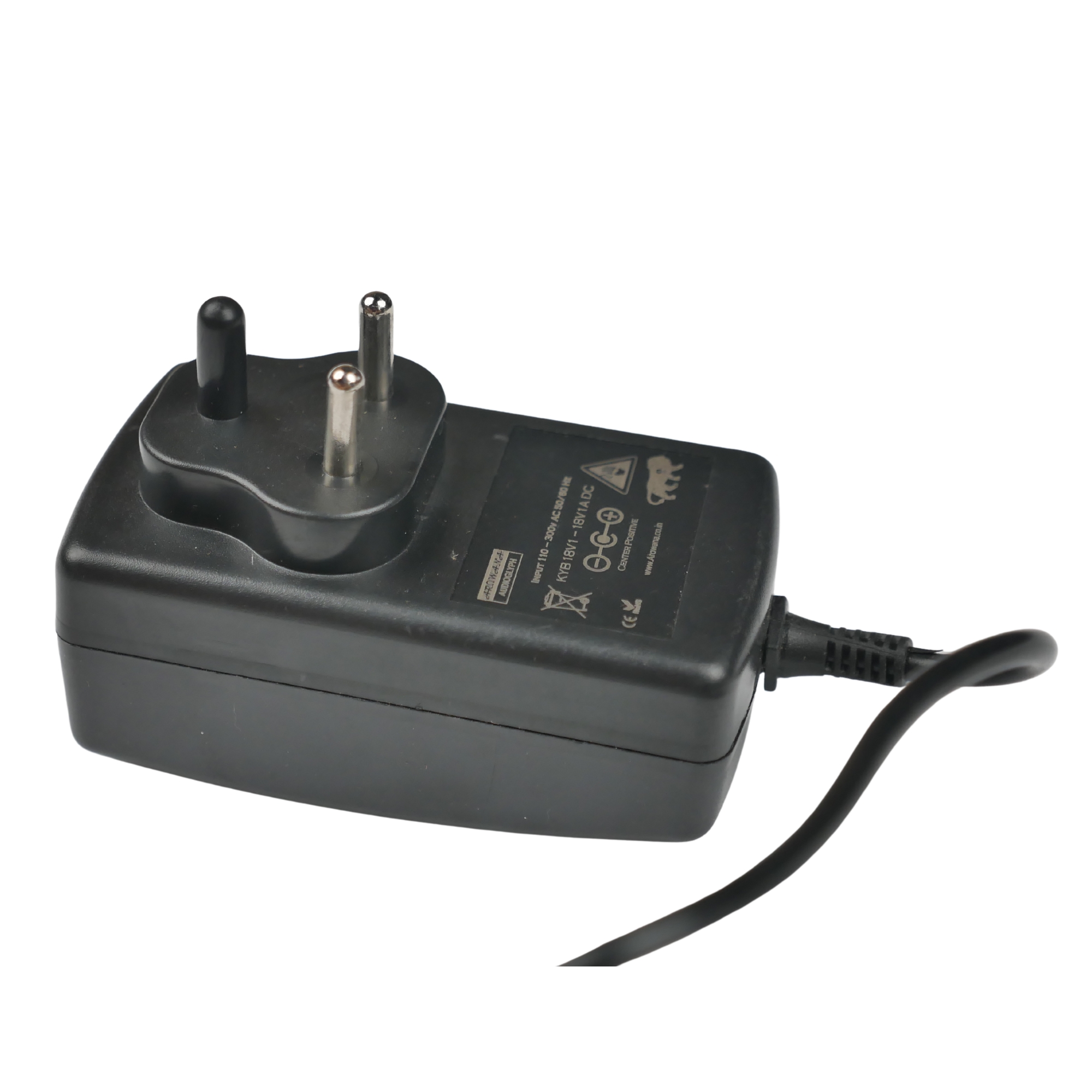

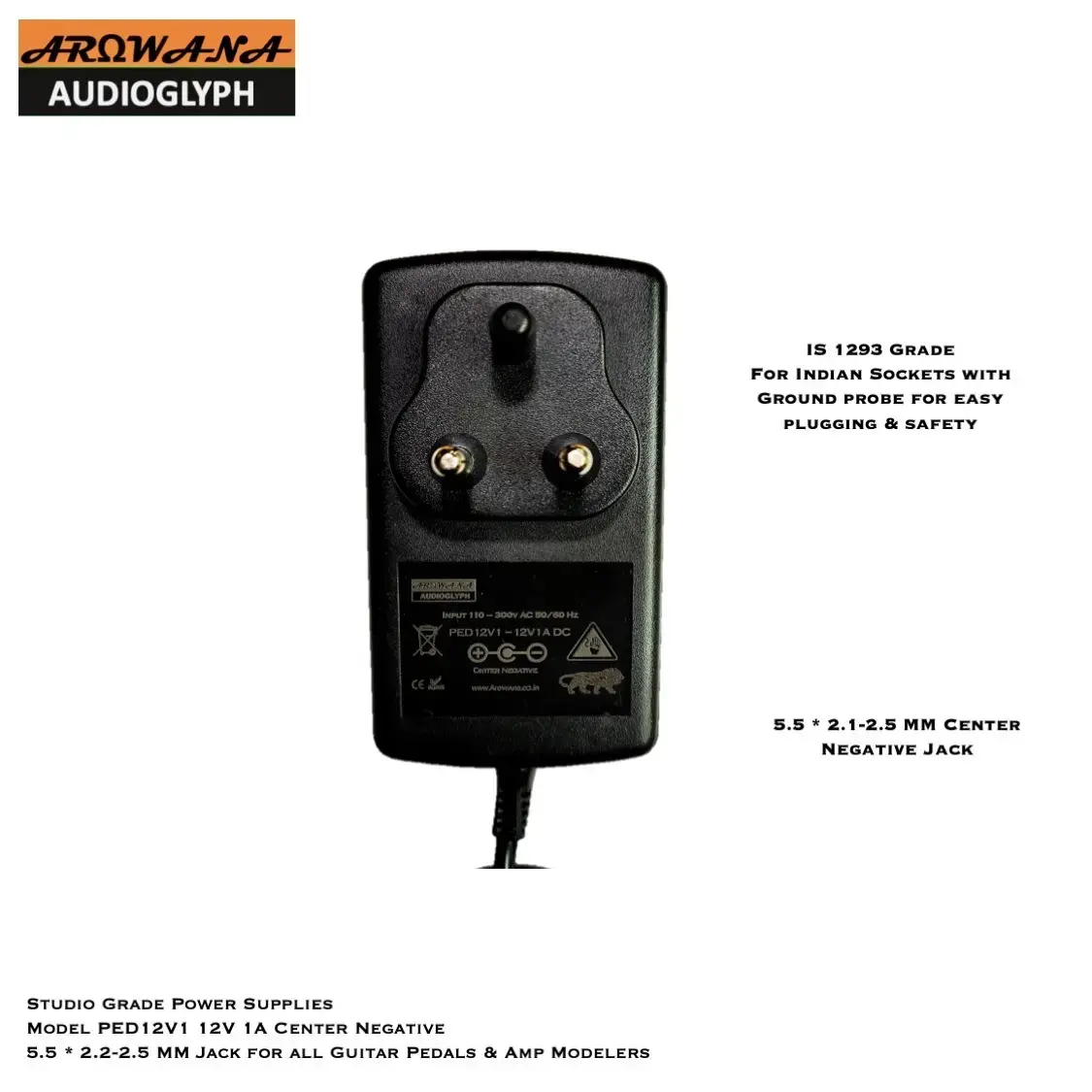

A non-conductive third (dummy earth) pin locks the adapter firmly into Indian 3-pin sockets, so it cannot sag, spark or fall out mid-gig - without bonding your gear to a noisy building earth.
Arowana AudioGlyph: Designed And Built In Mumbai
Arowana AudioGlyph is the pro-audio line of Arowana Automation, a Mumbai company that designs and manufactures its own products in-house at its factory in Kandivali East. AudioGlyph power supplies, power conditioners and cables are engineered specifically for musical instruments and sensitive audio gear - with galvanic isolation, shielded ferrite-choked cables, surge and thermal protection and a non-conductive stabilising pin built for Indian stages and studios. Every product is made in India and fully repairable, with parts stocked at the factory to keep turnaround short. Procraft India is the official distributor of Arowana products across India.
Engineered With Purpose
True Galvanic Isolation
Arowana AudioGlyph supplies separate the AC mains side from the DC output with a 3.0 kV optical and magnetic isolation barrier. That stops mains hum, stray ground loops and 50 Hz buzz from reaching your signal chain - even on stages shared with lighting dimmers and air conditioners.

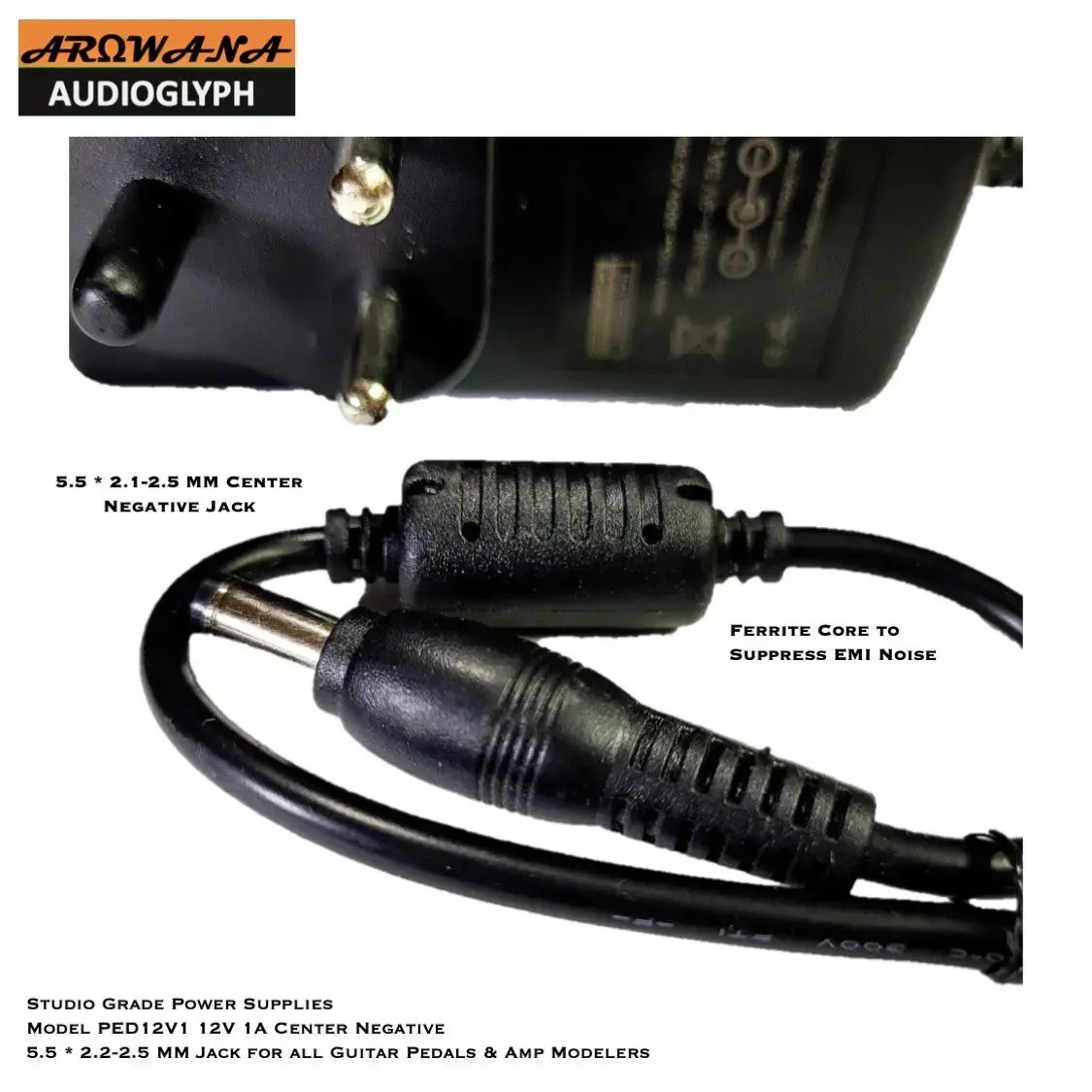

Shielded DC Cable With Ferrite Choke

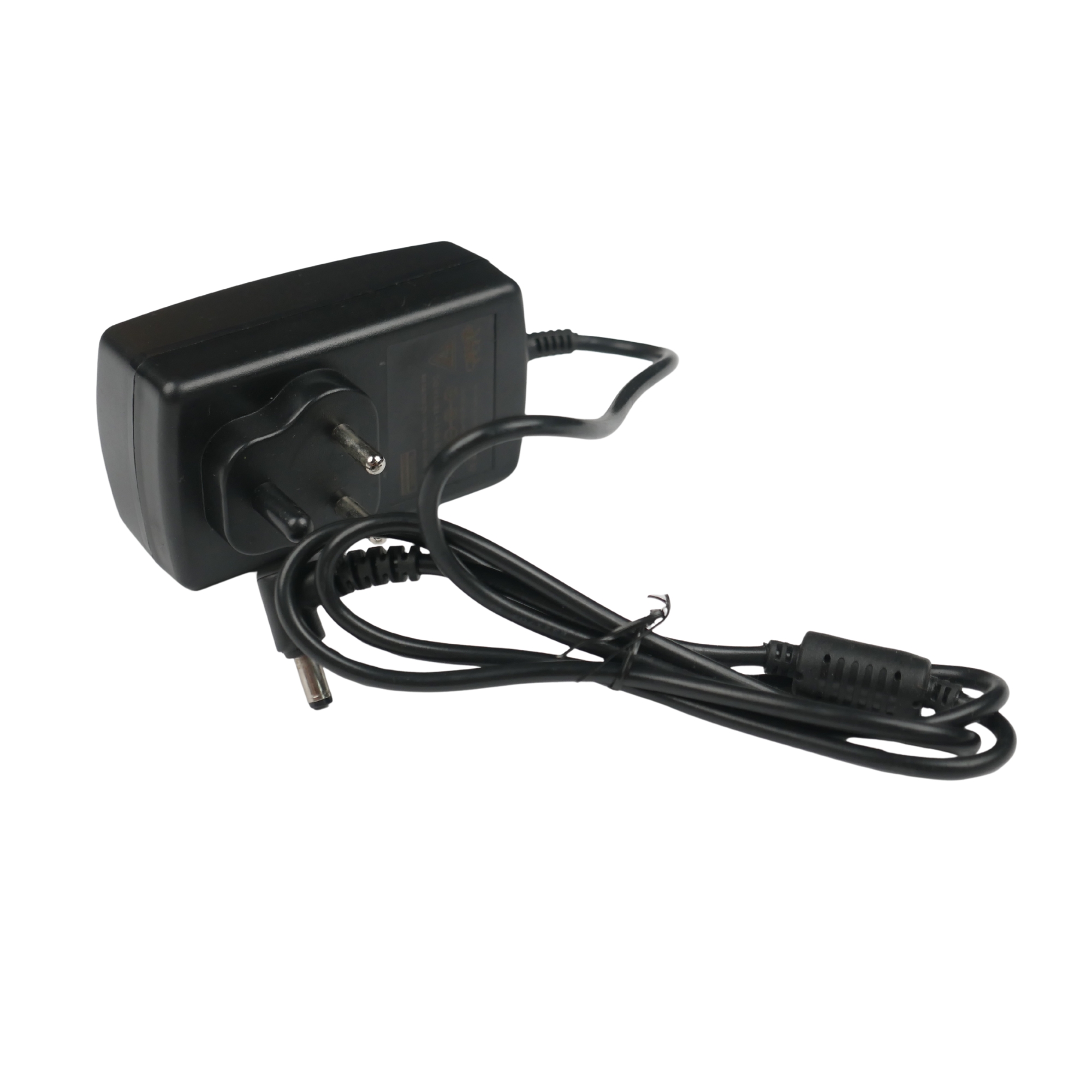

The 1-metre shielded DC cable with inline ferrite choke uses a heavy-duty dual-conductor lead with full-coverage aluminium/mylar foil and a drain wire, so radiated switching noise stays inside the jacket instead of coupling into single-coil pickups and Hi-Z patch cables. A sintered nickel-zinc (NiZn) ferrite bead moulded next to the plug acts as a common-mode choke - over 120 ohms at 100 MHz across the 10-500 MHz band - trapping Wi-Fi, LED-dimmer and switching hash before it reaches your guitar pedals and processors, with zero DC insertion loss.

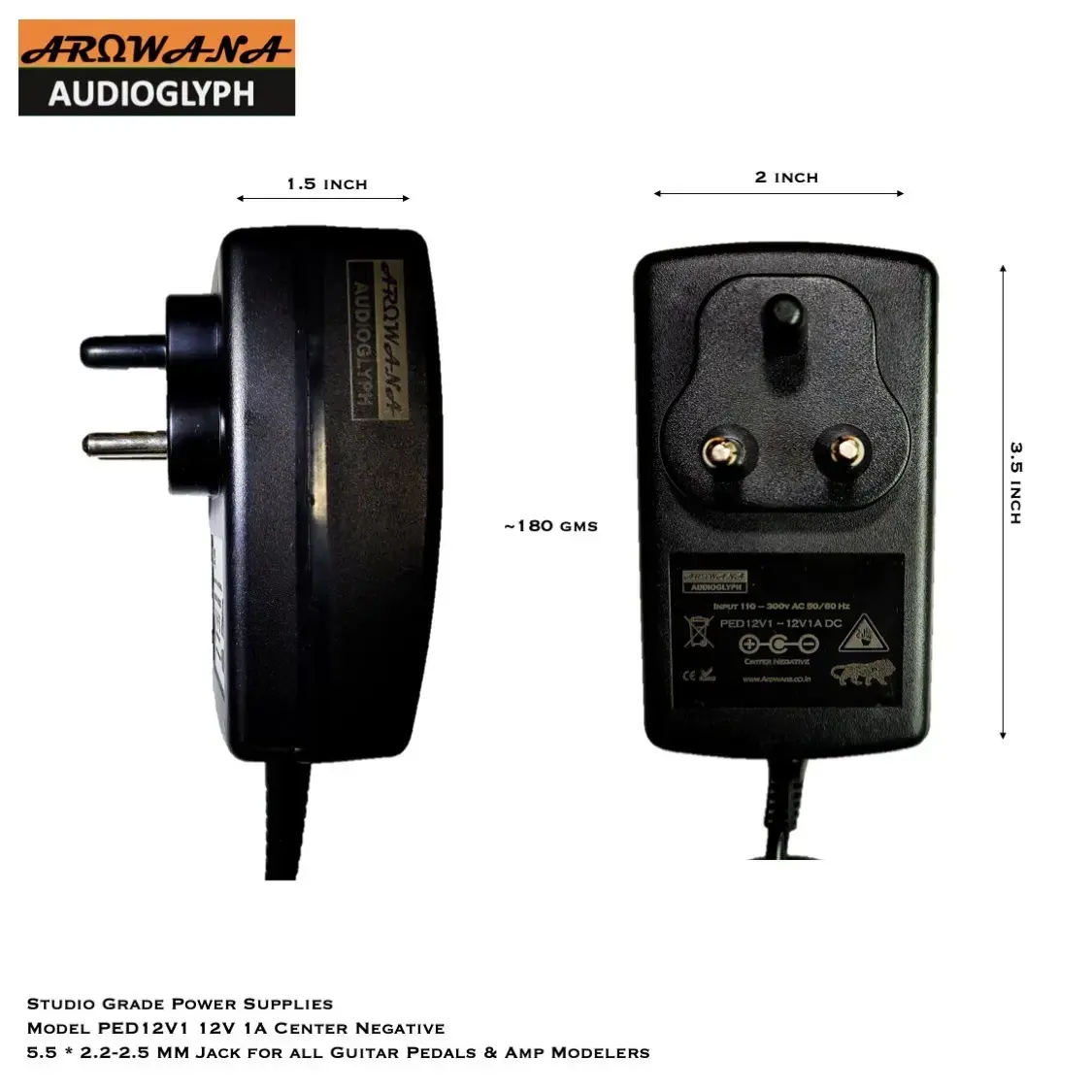

Protected Against Spikes, Shorts And Heat
A three-tier protection system guards your gear: fast TVS surge clamping for grid spikes, automatic foldback short-circuit protection that resets once a pinched cable is cleared, and a thermal cutoff for long, hot sets. The universal 110-300V AC input rides through venue voltage sags without rebooting.

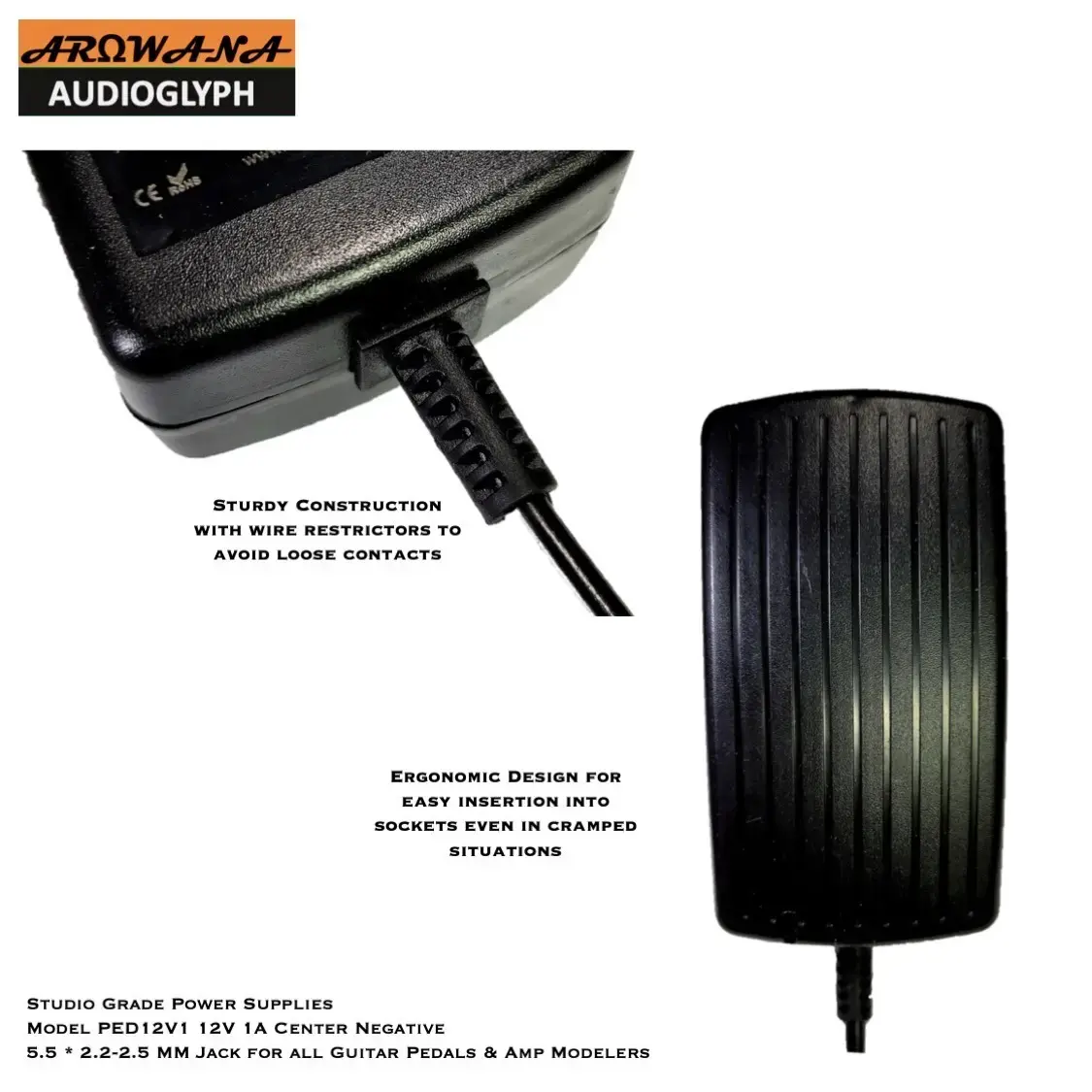

Precision Plug, Tour-Grade Housing

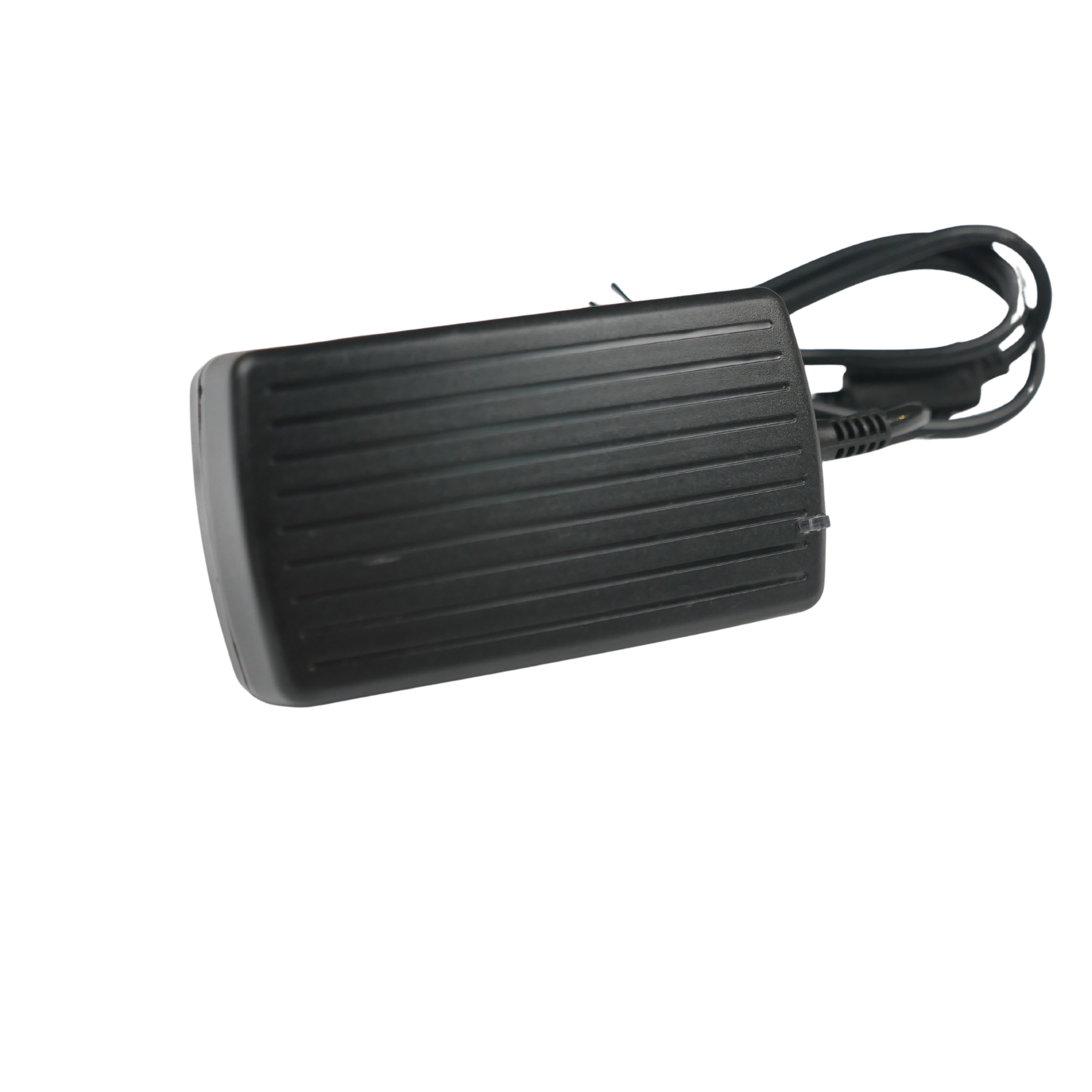

The DC barrel is precision-machined to +/-0.05mm with phosphor-bronze spring contacts (under 25 milliohm contact resistance), so it grips tightly and will not crackle or drop out when you stomp. Multi-ribbed overmoulded TPE strain-relief boots at both ends are rated for over 10K flex cycles, and the matte black UL94-V0 flame-retardant enclosure with its non-conductive dummy earth pin is built for road cases and stage power boxes.
Specifications
| Model | PED12V1 |
| Brand | Arowana AudioGlyph |
| Series | PED Series (Center-Negative) |
| Output | 12V DC, 1A (1000mA), Regulated |
| Maximum Power | 12W |

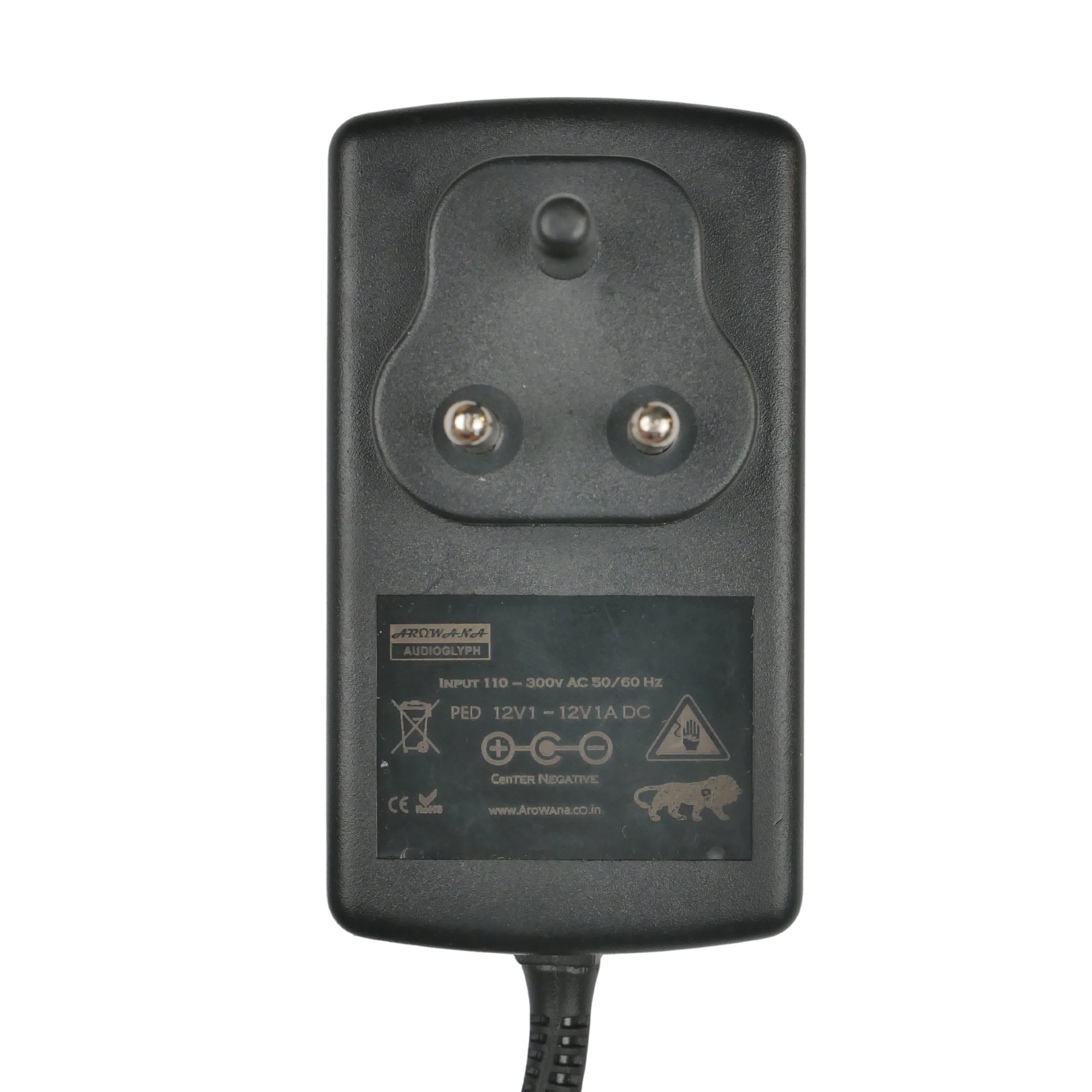

| Polarity | Center Negative (Inner Pin Negative) |
| DC Connector | 5.5 x 2.1mm, Straight |
| Plug Contacts | Phosphor-Bronze Spring, Under 25 Milliohm, +/-0.05mm Bore Tolerance |
| Cable | 1m shielded DC cable with inline ferrite choke |
| Cable Shield | Full-Coverage Aluminium/Mylar Foil With Drain Wire |
| Ferrite Choke | Sintered NiZn, Over 120 Ohms At 100 MHz (10-500 MHz) |
| Strain Relief | Overmoulded TPE Boots Both Ends, Over 10K Flex Cycles |
| Topology | Regulated Switch-Mode (SMPS) With Audio-Grade Filtering |
| Input | 110-300V AC, 50/60 Hz (Universal Wide Range) |
| Isolation | Primary-To-Secondary Galvanic, 3.0 kV |
| Ripple & Noise | Under 10 mVp-p Typical |
| Regulation | +/- 1.5% Under Dynamic Load |
| Protection | TVS Surge Clamping, Short-Circuit Foldback (Auto Reset), Thermal Cutoff |
| Wall Plug | Indian 3-Pin With Non-Conductive Stabilising Pin |
| Enclosure | UL94-V0 Flame-Retardant, Matte Black |
| Operating Temperature | 0 To 45 Degrees C |
| Storage | -20 To 70 Degrees C, 10-90% RH Non-Condensing |
| Field Return Rate | Under 0.1% (Arowana Figure) |
| Compatible With | Guitar pedals and processors including the Line 6 HX Stomp and Neural DSP Nano Cortex |
| Compliance | CE, RoHS |
| Warranty | 1 Year |
| Made In | India (Mumbai) |
| EAN | 0605725672978 |
Compare Models
| Spec | PED9V1 | This Kit PED12V1 |
PED12V2 | QDCRTX | Generic Adapter |
|---|---|---|---|---|---|
| Output | 9V 1A | 12V 1A | 12V 2A | 12V 3A | Varies |
| Max Power | 9W | 12W | 24W | 36W | Varies |
| Polarity | Center Negative | Center Negative | Center Negative | Center Negative | Loose Universal Tips |
| Connector | 5.5 x 2.1mm | 5.5 x 2.1mm | 5.5 x 2.1mm | 5.5 x 2.1mm | Interchangeable Tips |
| Isolation | Galvanic, 3.0 kV | Galvanic, 3.0 kV | Galvanic, 3.0 kV | Galvanic, 3.0 kV | Shared Ground Plane |
| Cable | Shielded + Moulded Ferrite | Shielded + Moulded Ferrite | Shielded + Moulded Ferrite | Shielded + Moulded Ferrite | Unshielded Twin Wire |
| Socket Fit | 3-Pin Rigid Anchor | 3-Pin Rigid Anchor | 3-Pin Rigid Anchor | 3-Pin Rigid Anchor | 2-Pin Loose Fit |
| Spike Handling | 110-300V AC + TVS | 110-300V AC + TVS | 110-300V AC + TVS | 110-300V AC + TVS | Burnout Above 250V |
