ID14 by Audient

SKU: id14 audient
MRP:
₹26,900.00
₹23,900.00
11% Off
(Inclusive of all taxes)

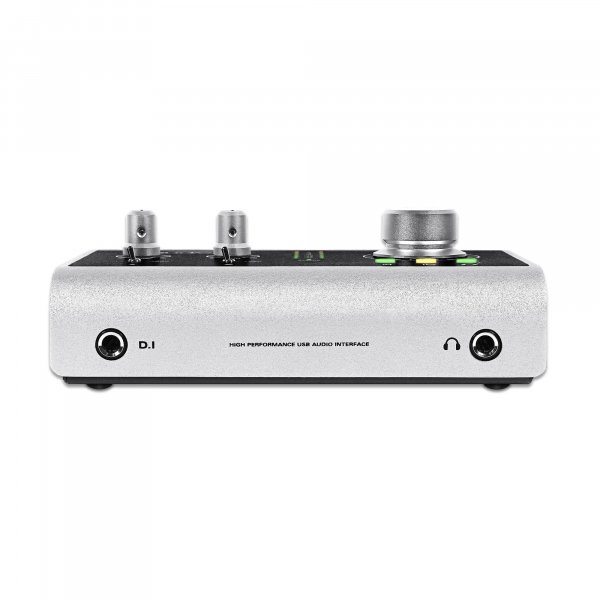

iD14 delivers the audio performance of a large format console in a compact and elegant desktop package. iD14 provides two Audient console mic pres, class-leading Burr Brown converter technology, console style monitor control, JFET D.I and our virtual scroll wheel technology, ScrollControl. With its versatile feature set and intuitive layout, iD14 will become the hub of your studio in no time. We understand the need to keep things simple and iD14’s mixer app was designed with that in mind. Whether you’re creating low latency cue mixes or utilising the flexible monitor control, iD14 tightly integrates the hardware and software making the recording process easy. Enabling you to concentrate on what’s really important - the music.
More Information
- +
- +
Price in points: 23900
Earn Reward Points: 239

Description

MICROPHONE PREAMPLIFIER:

(measurement includes ADC signal path)

MIC GAIN: 0 to 66 dB (inc. +10 dB software boost)
LINE GAIN: -10 to 56 dB (-10dB hardwired line pad)
PHANTOM POWER: 48V ±4V @ 10mA/Channel (12VDC only)*
MIC EIN: <-127.0 dBu
CMRR: >80 dB @ 1kHz
MAXIMUM INPUT LEVEL: +12 dBu (0 dBFS digital Maximum)
INPUT IMPEDANCE (Mic): 2.8 kΩ Balanced
INPUT IMPEDANCE (Line): >8kΩ Balanced
FREQUENCY RESPONSE: ±0.1 dB 20Hz to 22kHz @ min. gain
±1.0 dB 20Hz to 22kHz @ max. gain
CROSSTALK: <-90 dBu
THD+N @ 0dBu (1kHz): 0.0025% (-92 dBu)
SNR: 96 dB un-weighted, 99 dB A-weighted
XLR Combi Female Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4" TRS Jack Tip (Hot), Ring (Cold) & Sleeve (Shield)

D.I (Channel 1):

D.I GAIN: 0 to 66 dB (inc. +10 dB software boost)
MAXIMUM INPUT LEVEL: +9 dBu (0.6% THD typical)
INPUT IMPEDANCE: >500kΩ Unbalanced
FREQUENCY RESPONSE: ±0.1 dB 20Hz to 22kHz
THD+N @ 0dBu (1kHz): <0.04% all musical 2nd and 3rd harmonics
SNR: 95 dB un-weighted, 98 dB A-weighted
1/4” JACK: TIP (Hot) & SLEEVE (Shield)

ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2):

(measured sans microphone preamplifier under AES-17)

MAXIMUM INPUT LEVEL: +12 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
FREQUENCY RESPONSE: ±0.1 dB 10Hz to Fs/2 (flat to nyquist)
CROSSTALK: -100 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
THD+N @ -6dBFS (1kHz): <0.0015% (-97 dB)
DYNAMIC RANGE: 113 dB un-weighted
116 dB A-weighted

DIGITAL TO ANALOGUE CONVERTER (DAC 1&2):

(measured under AES-17 at line outputs 1&2)

MAXIMUM OUTPUT LEVEL: +12 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
OUTPUT IMPEDANCE <100Ω Balanced
FREQUENCY RESPONSE: ±0.1 dB 10Hz to Fs/2 (flat to nyquist)
CROSSTALK: <-105 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.003% (-90.5 dB)
DYNAMIC RANGE: 114 dB un-weighted
117 dB A-weighted
1/4" TRS Jack Tip (Hot), Ring (Cold) & Sleeve (Shield)

HEADPHONE OUTPUT (DAC 3&4):

(measured under AES-17 at phones output)

MAXIMUM OUTPUT LEVEL: +12 dBu
DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
VOLTAGE GAIN: +6 dB (optimised for loudness)
OUTPUT IMPEDANCE: <30 Ω Balanced
FREQUENCY RESPONSE: ±1.0 dB 10Hz to Fs/2 (load dependant)
CROSSTALK: -100 dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
DYNAMIC RANGE: 108 dB un-weighted
111 dB A-weighted
MAX LEVEL INTO 30ohms: +4 dBu, 0.005% THD+N, Power: 101mW
MAX LEVEL INTO 60ohms: +5 dBu, 0.004% THD+N, Power: 64mW
MAX LEVEL INTO 600ohms: +13 dBu, 0.0025% THD+N, Power: 39mW
1/4” JACK: TIP (Left), RING (Right) & SLEEVE (Shield)

DIGITAL INPUT:

8-CHANNEL ADAT: 44.1kHz to 48kHz
4-CHANNEL ADAT: 88.2kHz to 96kHz SMUX
STEREO S/PDIF / TOSLINK 44.1kHz to 96kHz (Stereo)

USB 2.0 HIGH SPEED:

BUS POWER: 500mA @5V System Limit
425mA @5V Maximum (No 48V)
(Phantom power only available on 12VDC)*
No. of INPUT CHANNELS: 10 (2 Analogue, 8 Digital)
No. of OUTPUT CHANNELS: 4 (4 Analogue)
DSP MIXER LATENCY: ROUND TRIP (in-to-out)
44.1kHz 1.660ms
48.0kHz 1.531ms
88.2kHz 0.844ms
96.0kHz 0.771ms

DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):

44.1 kHz 6.52ms
96.0 kHz 4.65ms



POWER SUPPLY:



12VDC Centre Positive - 1.25A (required for full 48V Phantom Power)*



* iD14 requires a lot of power for class leading converters and class-A microphone preamplfiers. We could not beat the laws of physics so an external supply is required for 48V phantom power. Your microphones will thank you when they get enough voltage!
